• Circuit Breaker Finder is a multi-function circuit tracer/ identifier.
• With ETL Approval.

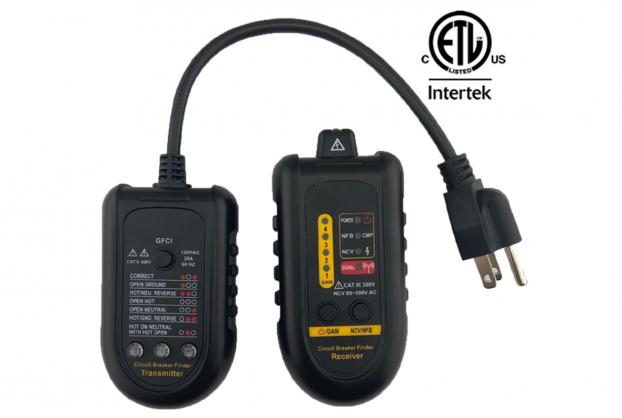

• This device is formed by one Transmitter and one Receiver.
• Non-Contact Voltage Detecting.
• Test for GFCI receptacle for proper operation. GFCI / RCD Leaking Current.
• Operating Environment: 0~50℃(32~122°F); 30~80% RH max; 50% RH
  above 30.℃
• Altitude: < 2000m, for indoor application only.
• Pollution Degree: 2.
• Storage Environment: -30~70℃(-22~158°F); 80% RH max
• TWO derivative ways to locate the No Fuse Breaker:---
  1.) Searching Mode. 2.) Comparison Mode.
• There are 3 functions: (1) Socket Tester (Wire Mapping).
  (2) Circuit Tracing / Identifying. (3) Non-Contact Voltage Detecting.
• Safty Standard:---
  UL 61010-1, UL 61010-2-030, CAT II 300V (Transmitter), CAT III 300V (Receiver).
• Transmitter:---
  Voltage: 120VAC Single Phase Two Wires (Live, Neutral) with Ground.
  Frequency: 47~63Hz.
  GFCI Leaking Current: 7mA@120VAC.
  Power Plug Type: TYPE B for US.
• Receiver:---
  Non-Contact Voltage Detection: 24~300VAC.
  Auto Shut Down: After 10 minutes w/o any operation.
  Battery: 9V Alkaline X 1.
