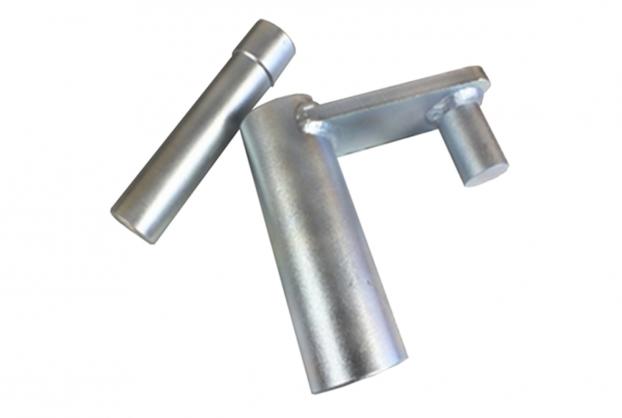

•‧Two part tool for removing and replacing pinion drive flange on rear differential.‧
•‧A 2 pieces tool to facilitate the removal of the pinion flange on a FREELANDER 2
  rear differential.
•‧Approximate Dimensions:
  Inner tool - 160mm(6.3”) long, 3/4”(19mm) socket drive, fine spline 24mm(0.95”)
                     overall diameter.
  Outer tool - 150mm(5.9”) long, with 135mm(5.3”) reaction arm. double hex (12point)
                      socket 41mmAF.
•‧Application Range: Freelander 2, 2006 onwards.
•‧Ref: JLR-205-984.
