Engine Repair Tools
914-1583

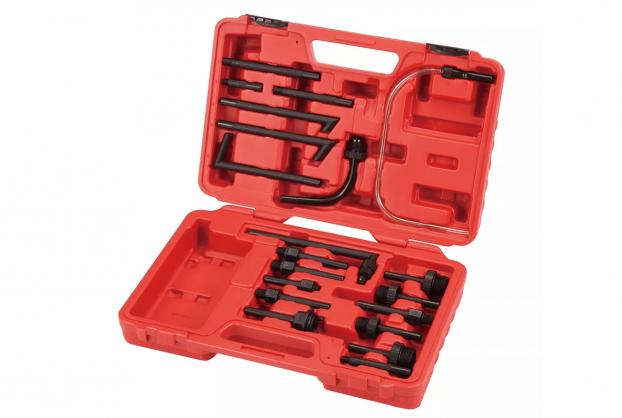

ATF Filling Adapter Set (20 pcs)
• Set for fitting fill plug hole (or drain plug hole) on automatic transmissions
with no dipstick.

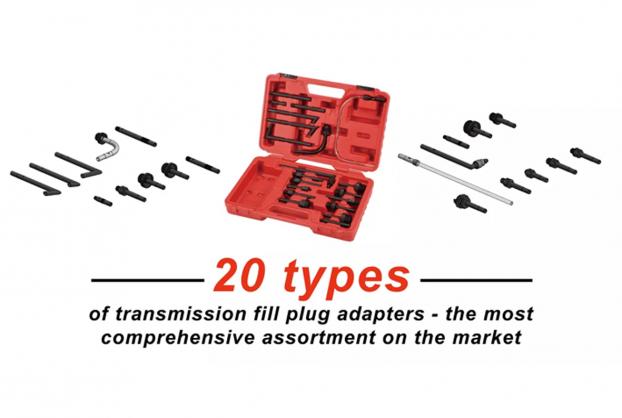

• Includes 20 different types of adapters for Audi, Cadillac, Chevrolet, Ford,
Honda, Hyundai, Infiniti, Mercedes, Nissan, Toyota, Volkswagen, and Volvo.
• Adapters in nylon 6-6 material provides lightweight but also durable features.
• 1.) ATF Adapter No. 1 - 1/8"-27 NPT, Dimension: 1.0 × 1.0 × 12.2 cm, Weight: 6.2 g.
• 2.) ATF Adapter No. 2 - 5/16”-24UNF, Dimension: 1.0 × 1.0 × 5.1 cm, Weight: 2.2 g.
• 3.) ATF Adapter No. 3 - M10 x 1.0, Dimension: 1.0 × 1.0 × 9.9 cm, Weight: 4.6 g.
• 4.) ATF Adapter No. 4 - Small Hook Type,
Dimension: 1.0 × 1.8 × 15.0 cm, Weight: 7.5 g.
• 5.) ATF Adapter No. 5 - Medium Hook Type,
Dimension: 1.0 × 2.8 × 15.0 cm, Weight: 8 g.
• 6.) ATF Adapter No. 6 - Large Hook Type,
Dimension: 1.0 × 4.5 × 14.0 cm, Weight: 8 g.
• 7.) ATF Adapter No. 7 - M18 × 1.50, Dimension: 9.0 × 2.5 × 9.0 cm, Weight: 52 g.
• 8.) ATF Adapter No. 8 - M24 × 1.50, Dimension: 3.3 × 3.3 × 7.2 cm, Weight: 14 g.
• 9.) ATF Adapter No. 9 - M22 × 1.50, Dimension: 3.3 × 3.3 × 7.2 cm, Weight: 12 g.
• 10.) ATF Adapter No. 10 - M12 × 1.50, Dimension: 1.7 × 1.7 × 8.7 cm, Weight: 7.2 g.
• 11.) ATF Adapter No. 11 - M18 × 1.50, Dimension: 2.4 × 2.4 × 7.2 cm, Weight: 9 g.
• 12.) ATF Adapter No. 12 - M30 × 1.50, Dimension: 3.5 × 3.5 × 7.2 cm, Weight: 15 g.
• 13.) ATF Adapter No. 13 - M8 × 1.0, Dimension: 1.0 × 1.0 × 7.6 cm, Weight: 3.5 g.
• 14.) ATF Adapter No. 14 - M10 × 1.0, Dimension: 0.7 × 2.3 × 16.0 cm, Weight: 39 g.
• 15.) ATF Adapter No. 15 - Flexible 300mm Hose,
Dimension: 1.3 × 1.3 × 37.0 cm, Weight: 34 g.
• 16.) ATF Adapter No. 16 - M12 × 1.25, Dimension: 2.0 × 2.0 × 8.7 cm, Weight: 7.2 g.
• 17.) ATF Adapter No. 17 - M14 × 1.50, Dimension: 2.0 × 2.0 × 8.7 cm, Weight: 7.6 g.
• 18.) ATF Adapter No. 18 - M10 × 1.5, Dimension: 1.7 × 1.7 × 6.6 cm, Weight: 6 g.
• 19.) ATF Adapter No. 19 - M12 × 1.75, Dimension: 2.0 × 2.0 × 8.7 cm, Weight: 7 g.
• 20.) ATF Adapter No. 20 - Ear-clip Type, Dimension: 4.0 × 4.0 × 6.8 cm, Weight: 15 g.
• Blow molded case (red) / 10 sets / N.W.: 10.2 kgS / G.W.: 11.2 kg / 2.8 CUFT
• Set for fitting fill plug hole (or drain plug hole) on automatic transmissions
with no dipstick.
• Includes 20 different types of adapters for Audi, Cadillac, Chevrolet, Ford,
Honda, Hyundai, Infiniti, Mercedes, Nissan, Toyota, Volkswagen, and Volvo.
• Adapters in nylon 6-6 material provides lightweight but also durable features.
• 1.) ATF Adapter No. 1 - 1/8"-27 NPT, Dimension: 1.0 × 1.0 × 12.2 cm, Weight: 6.2 g.
• 2.) ATF Adapter No. 2 - 5/16”-24UNF, Dimension: 1.0 × 1.0 × 5.1 cm, Weight: 2.2 g.
• 3.) ATF Adapter No. 3 - M10 x 1.0, Dimension: 1.0 × 1.0 × 9.9 cm, Weight: 4.6 g.
• 4.) ATF Adapter No. 4 - Small Hook Type,
Dimension: 1.0 × 1.8 × 15.0 cm, Weight: 7.5 g.
• 5.) ATF Adapter No. 5 - Medium Hook Type,
Dimension: 1.0 × 2.8 × 15.0 cm, Weight: 8 g.
• 6.) ATF Adapter No. 6 - Large Hook Type,
Dimension: 1.0 × 4.5 × 14.0 cm, Weight: 8 g.
• 7.) ATF Adapter No. 7 - M18 × 1.50, Dimension: 9.0 × 2.5 × 9.0 cm, Weight: 52 g.
• 8.) ATF Adapter No. 8 - M24 × 1.50, Dimension: 3.3 × 3.3 × 7.2 cm, Weight: 14 g.
• 9.) ATF Adapter No. 9 - M22 × 1.50, Dimension: 3.3 × 3.3 × 7.2 cm, Weight: 12 g.
• 10.) ATF Adapter No. 10 - M12 × 1.50, Dimension: 1.7 × 1.7 × 8.7 cm, Weight: 7.2 g.
• 11.) ATF Adapter No. 11 - M18 × 1.50, Dimension: 2.4 × 2.4 × 7.2 cm, Weight: 9 g.
• 12.) ATF Adapter No. 12 - M30 × 1.50, Dimension: 3.5 × 3.5 × 7.2 cm, Weight: 15 g.
• 13.) ATF Adapter No. 13 - M8 × 1.0, Dimension: 1.0 × 1.0 × 7.6 cm, Weight: 3.5 g.
• 14.) ATF Adapter No. 14 - M10 × 1.0, Dimension: 0.7 × 2.3 × 16.0 cm, Weight: 39 g.
• 15.) ATF Adapter No. 15 - Flexible 300mm Hose,
Dimension: 1.3 × 1.3 × 37.0 cm, Weight: 34 g.
• 16.) ATF Adapter No. 16 - M12 × 1.25, Dimension: 2.0 × 2.0 × 8.7 cm, Weight: 7.2 g.
• 17.) ATF Adapter No. 17 - M14 × 1.50, Dimension: 2.0 × 2.0 × 8.7 cm, Weight: 7.6 g.
• 18.) ATF Adapter No. 18 - M10 × 1.5, Dimension: 1.7 × 1.7 × 6.6 cm, Weight: 6 g.
• 19.) ATF Adapter No. 19 - M12 × 1.75, Dimension: 2.0 × 2.0 × 8.7 cm, Weight: 7 g.
• 20.) ATF Adapter No. 20 - Ear-clip Type, Dimension: 4.0 × 4.0 × 6.8 cm, Weight: 15 g.
• Blow molded case (red) / 10 sets / N.W.: 10.2 kgS / G.W.: 11.2 kg / 2.8 CUFT
