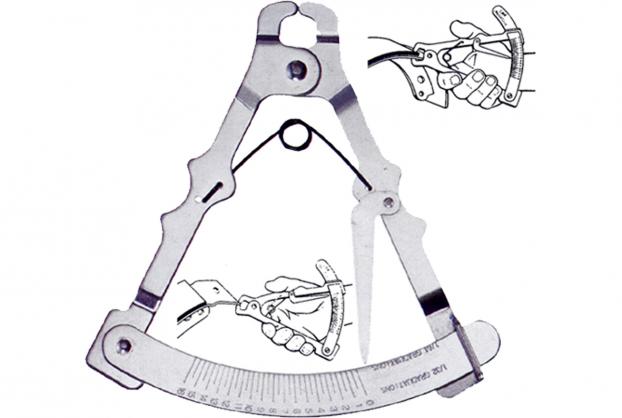

•Keep jaws on shoe, move the indicator arrow to ” O ”,  this will automatically subtract the shoe thickness from the total measurement.
•Measures brake lining from 0 to 1/2” in 1/64” graduations.
•Apply jaws to shoe and lining.
•The arrow will indicate the amount of lining remaining.
