•Application & Chemical Characteristics: paint, waste oil, resin, slop; 5<PH<8.

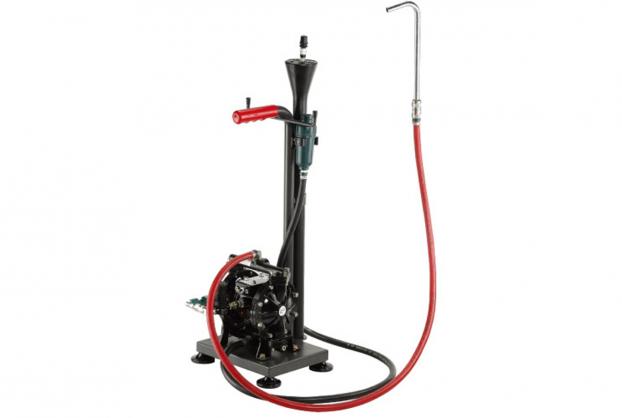

•Air operated diaphragm pump.
•Max. Air Supply Pressure: 8kgf/cm2 (120psig).
•Inlet & Outlet: 3/8” NPT. Air Inlet: 1/4” NPT.
•Max Flow Rate: 8 G.P.M. (32 L/min).
•Max. Delivery: 28 L/m.
•Max. Size Solid: dia. 2mm.
•Suction Lift Capability: 6M primed, 3M dry.
•Working Pressure: 27 bar.
•Pump Ratio: 1: 1.
•Weight: 7.58kgs.
•Dimension: 360 x 290 x 790mm.
•Non Body Wetted: Aluminum Alloy.
•Body Wetted: A-15: Aluminum Alloy (A).
•Body Weight: A-15: 4kgs.
