•Suitable for various sorts of shock absorbers which can be dismantled from vehicles.
•Operated manually: no electricity is needed. The operation is quite easy.
•It is both convenient and safe.
•Equipped with 3 types of string fixation device: various sizes all can be applied herewith. .
•Fixation hole is attached to the bottom foot rack.
•It can be fixed securely to the floor of work place or can be attached with flexible wheel for easy movement.
•Professional dismantler of shock absorber: equipped with many sorts of clamping device, can be freely coordinated and matched for better usage.
•The usage purpose is quite broad and far-flung.
•This makes your job process safer and quicker.
•Operation:---

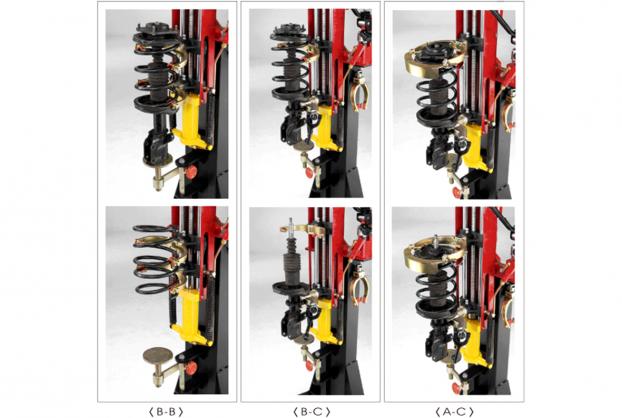

 1.) First, please check the spring angle of shock absorber that you would like to disassemble and then to choose A, B, C clamp.

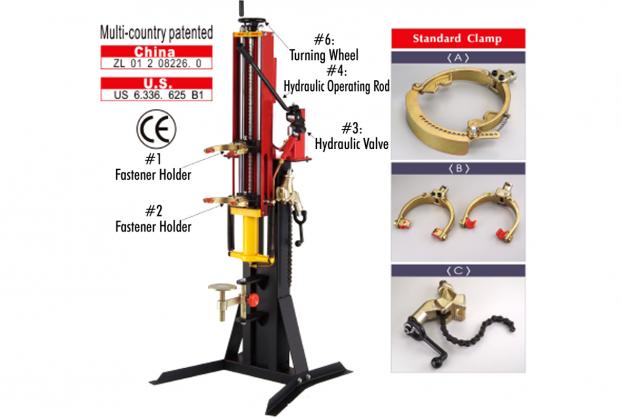

 2.) Assemble clamp on #1 and #2 fasten holder (for example B fit B or A fit C).
 3.) Then #6 turning wheel of #1, fastener holder, adjust to the proper position and then put adjust clamp on shock absorber to completely press spring will do.
 4.) To lock tightly #3 hydraulic valve and to shake up and down for #4 hydraulic operated rod. Then hydraulic spring will move #2 clamp to fasten seat up to your proper height position. Then you can disassemble the auto shock absorber.
 5.) After dismantling and changing the shock absorber. To slowly release #3 hydraulic valve, then #2 fastener holder will lower to original position.
•N.W.: 87.50 kgs.
•G.W.: 107.0 kgs.
•Cuft: 13’
