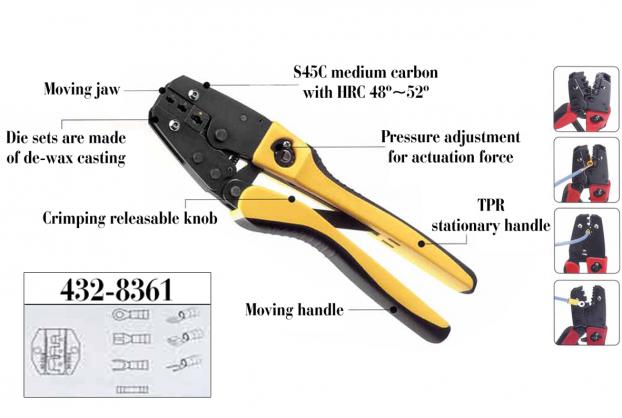

•Heavy duty steel construction.
•Reduces hand force by up to 50% compared to regular crimping pliers.
•Precision crimping dies for excellent crimping accuracy.
•Ergonomically designed TPR handles.
•Consistently high crimping quality.
•Compound leverage for ease of operation.
•Wide selection of interchangeable dies.
•Ratcheting desing insures positive exacting crimps.
•Safe and push force saving.
•432-8360: Smart vise crimping tool w/two component handles. Weight: 585g. Length: 10” (254mm).

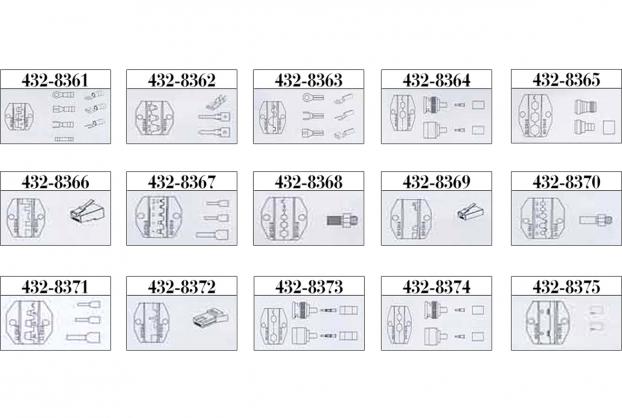

•432-8361: 22~10AWG (0.5mm2~6mm2) insulated terminals/color coded nests.
•432-8362: 22~12AWG non-insulated open barrel connectors, commercial type.
•432-8363: Suitable for non-insulated terminals 22~8AWG (0.5mm2~10mm2).
•432-8364: RG58, RG59/62, BNC/TNC coaxial connectors. Hex 0.255 (6.48mm), 0.213 (5.14mm), 0.068 (1.73mm).
•432-8365: RG59, RG-6 F-Type CATV connectors. Hex 0.35 (8.89mm), 0.32 (8.13mm), 0.255 (6.48mm).
•432-8366: FJ-45, 8-position keyed or non-keyed modular plugs (excluding AMP).
•432-8367: 22~10AWG (0.5mm2~6mm2) cord end sleeves.
•432-8368: For fiber optic SMA, SMB or SFR connectors. Hex 0.042 (1.07mm), 0.068 (1.73mm), 0.0151 (3.84mm), 0.178 (4.52mm), 0.213 (5.41mm).
•432-8369: 6P6C/RJ12, 6P4C/RJ11, 6P2C modular plugs.
•432-8370: Fiber optic connectors. Hex 0.128 (3.25mm), 0.137 (3.48mm), 0.190 (4.83mm) & Round 0.137 (3.48mm), 0.190 (4.83mm).
•432-8371: 10~6AWG (6mm2~16mm2) cord end sleeves.
•432-8372: For BRITISH Type 6P position.
•432-8373: AMP RJ-11, 2, 4, or 6 position modular plugs.
•432-8374: For 24~14AWG non-insulated open barrel contact commercial type pins & sockets.
•432-8375: For 30~18AWG non-insulated open barrel D-sub RS232 pins & socket pins & sockets.
