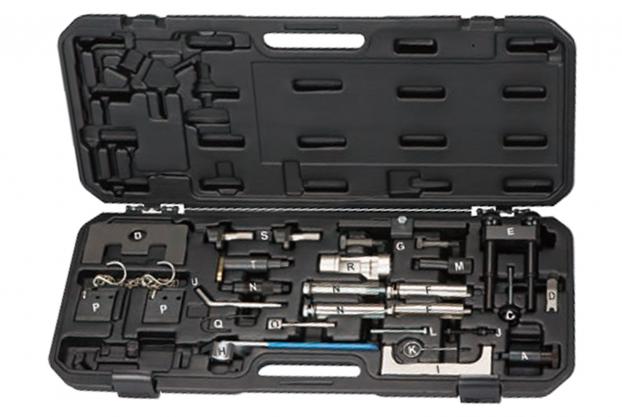

• This new kit of twenty tools one requires for the petrol and the diesel engine service,
  including timing belt replacement on recent model and also older 1.9D model from 1976.

• Application (Model): Audi: A4, A6, A8, Allroad (97-04).
                                     VW: Passat (98-04).
• Engine Code: AFB, AKE, AKN, AYM, BAU, BCZ, BDG, BDH, BFC.

• A.) Crankshaft Setting Tool.        OEM: T10050, 310-085.
• B.) Camshaft Adjustment Tool.   OEM: 3418.
• C.) Injection Pump Locking Pin. OEM: 3359/T20102.
• D.) Tensioner Locking Tool.  OEM: T10008/310-084/23-058.
• E.) Camshaft Locking Tool.  OEM: T10016 | T10074.
• F.) Support Guides.              OEM: 3369.
• G.) Camshaft Setting Plate. OEM: T20038/MP-1-312/3418.
• H.) Tension Pulley Holding Wrench. OEM: T10020/Matra V.159.
• I.)  Camshaft Setting Bracket. OEM: 2065A, U-40021.
• J.) Stud and Nuts.                   OEM: M5 x 55 mm.
• K.) Tensioner Locking Pin.      OEM: T40011.
• L.) Set Screw.                         OEM: M5 x 60 mm.
• M.) Injection Pump Pulley Timing Pin 15.4 mm. OEM: 2064, U20003.
• N.) Crankshaft Locking Pin. OEM: 3242/T30052.
 • U.) Fixing Pin.
• O.) Injection Pump Locking Pin. OEM: 3359.
• P.) Camshaft Setting Plate (2 per kit). OEM: 3458/T30094.
• Q.) Tensioner Locking Pin. OEM: T40011.
• R.) Tensioner Socket. OEM: 3078.
• S.) Camshaft Locking Clamp (2). OEM: T10123.
• T.) Crankshaft Locking Pin. OEM: T10121.
