Engine Timing Tool For VW & Audi W/4 Groove & Alu finish

Volkswagen & Audi Tools

914-5867

← →

Description
Specification

• This new kit of twenty seven tools requires for the petrol and diesel engine
service, including the timing belt replacement on the recent model and also
older 1.9 D model from 1976.

• Application (Model):---
Audi: A4, A6, A8, A11road (97-04).
Volkswagen: Passat (98-04).

• Engine Code: AFB, AKE, AKN, AYM, BAU, BCZ, BDG, BDH, BFC.

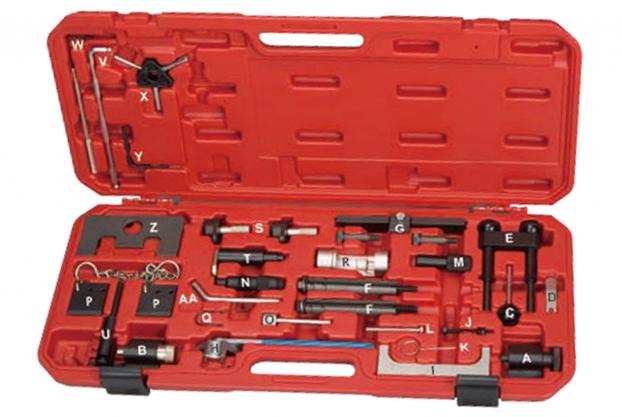

• 2pcs 4 grooves and alu finish locking tools
(take out 4pcs and add 2pcs, and add 5pcs more).

• A.) Crankshaft Setting Tool - Bored Engine.          OEM: T10050, 310-085.
• B.) Crankshaft Setting Tool - Non - bored Engine. OEM: T10100.
• C.) Injection Pump Locking Pin. OEM: 3359/T20102.
• D.) Tensioner Locking Tool. OEM: T10008/310-084/23-058.
• E.) Camshaft Locking Tool. OEM: T10016, T10074.
• F.) Support Guides. OEM: 3369.
• G.) Camshaft Setting Plate. OEM: T20038/MP-1-312/3418.
• H.) Tension Pulley Holding Wrench. OEM: T10020/Matra V.159.
• I.) Camshaft Setting Bracket.          OEM: 2065A, U-40021.
• J.) Stud and Nuts. OEM: M5 x 55mm.
• K.) Tensioner Locking Pin. OEM: T40011.
• L.) Set Screw. M5 x 60mm.
• M.) Injection Pump Pulley Timing Pin 15.4 mm. OEM: 2064, U20003.
• N.) Crankshaft Locking Pin.        OEM: 3242/T30052.
• O.) Injection Pump Locking Pin. OEM: 3359.
• P.) Camshaft Setting Plate (2 per kit). OEM: 3458/T30094.
• Q.) Tensioner Locking Pin. T40011.
• R.) Tensioner Socket. OEM: 3078.
• S.) Camshaft Locking Clamp (2). OEM: T10123.
• T.) Crankshaft Locking Pin. OEM:T10121.
• U.) Chain Tensioner Retainer. OEM: T20044/3366.
• V.) Tensioner Adjuster. OEM: T10264.
• W.) Tensioner Locking Tool. OEM: T10265.
• X.) Tensioner Setting Tool.
• Y.) Auxiliary Drive Belt Tensioner Locking Pin. T10060/T10060A , T20167.
• Z.) Camshaft Adjustment Tool. OEM: 3418.
• AA.) Fixing Pin.

• This new kit of twenty seven tools requires for the petrol and diesel engine
service, including the timing belt replacement on the recent model and also
older 1.9 D model from 1976.

• Application (Model):---
Audi: A4, A6, A8, A11road (97-04).
Volkswagen: Passat (98-04).

• Engine Code: AFB, AKE, AKN, AYM, BAU, BCZ, BDG, BDH, BFC.

• 2pcs 4 grooves and alu finish locking tools
(take out 4pcs and add 2pcs, and add 5pcs more).
