• The timing tool is for Ford 1.8 TDDi / TDCi from 2000 to 2006, including
  Fiesta / Focus / C-MAX / Tourneo / Transit with the chain drive engine.

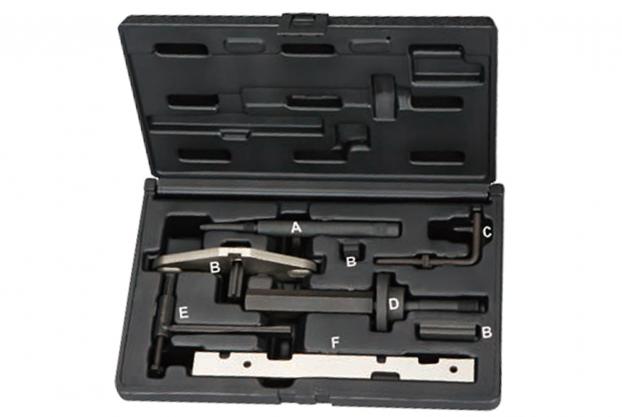

• A.) Crankshaft TDC Alignment Pin. OEM: 21-104 / 303-193.
• B.) Flywheel Locking Tool Set. OEM: 21-168 / 303-393/01/02.
• C.) Injection Pump Setting Pin. OEM: 23-019.
• D.) Chain Cover Alignment Tool. OEM: 21-230 / 303-652.
• E.) Fuel Sprocket Remover. OEM: 23-067 / 310-095.
• F.) Camshaft Alignment Plate. OEM: 21-162B / 303-367/376B.

• Application:---
  Ford C-MAX (07-12), Fiesta/Fusion (08-12), Focus (98-12), Focus / C-MAX (03-07),
          Galaxy (06-12), Grand C-MAX (10-12), Kuga (08-12), Mondeo (07-12),
          S-MAX (06-12), Tourneo Connect (02-12), Transit Connect (02-12).

• Engine Code:---
  1.25/1.4 16v Petrol Engine (Belt): RTJA, RTJB, SNJA, SNJB, SPJA, STJA, STJB.
  1.6 Ti-VCT Petrol Engine (Belt): HXDA, HXJA, HXJB, IQDA, IQDB, PNBA, PNDA,
                      RHBA, SIDA.
  1.8 TDi/TDDi/TDCi Diesel Engine (Belt): RTN, RTQ, RTP, BHDB, BHPA, C9DA,
                      C9DB, C9DC, F9DA, F9DB, FFBA, FFDA, FFWA, HCPA, HCPB, P7PA,
                      HCPB, P7PA, P9PA, QYBA, QYWA, R2PA, R3PA, RWPA, KKDA.
  2.0/2.2 TDCi Diesel Engine (Belt): AZBA, AZWA, G6DA, G6DB, G6DC,G6DD, G6DE,
                      G6DF, G6DG, IXDA, KLBA, KNBA, LPBA, Q4BA, QXBA, QXBB, QXWA,
                      QXWB, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA,
                      UFDB, UFWA, UKBA, UKDA, UKDB, UKWA
