Engine Repair Tools
914-1103

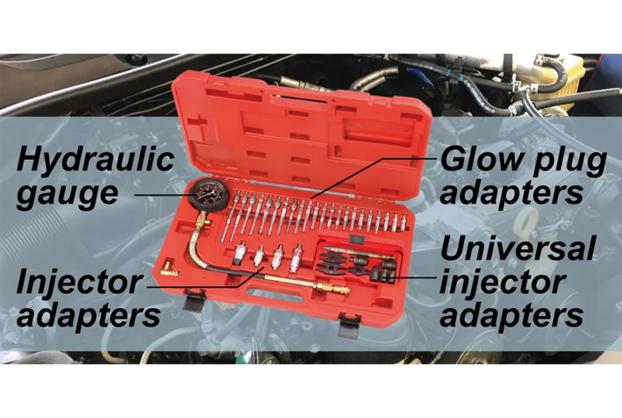

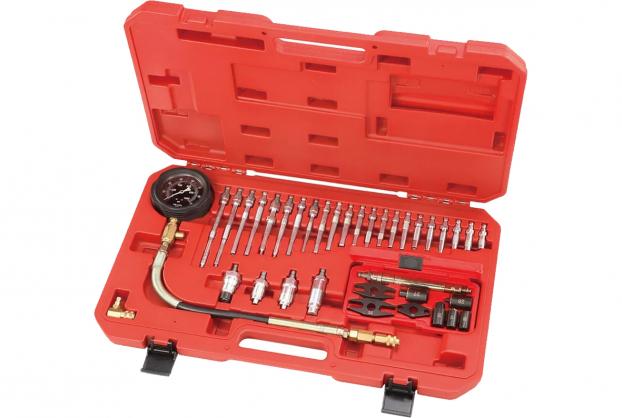

Diesel Compression Tester Set (37pcs)

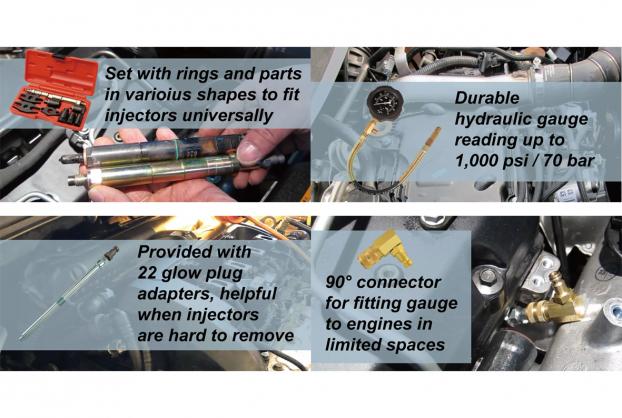

•Most common job for diesel compression test with wide range of adapters.
•Provided high quality " Hydraulic " gauge with modern design rubber jacket.
•Provided complete details for application vehicle lists.
•Additional clamp-on adapters provide more applications to truck, van, bus, marine and agricultural vehicle.
•Step 1: remove original injector or glow plug.

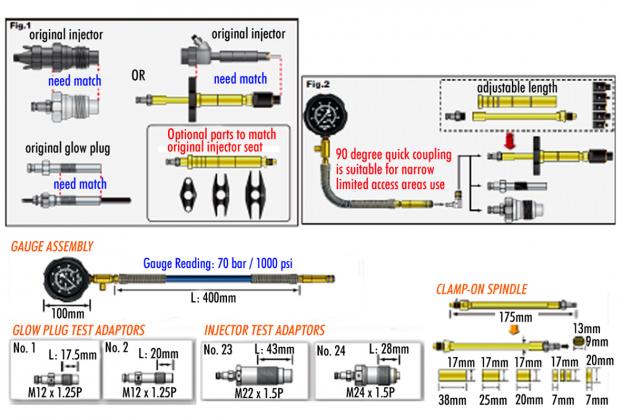

•Step 2: choose suitable test parts with appropriate length to match original injector / glow plug (Fig. 1)
•Step 3: connect the test adaptor on vehicle.
•Step 4: connect with gauge and start engine for compression testing (Fig. 2).
•Most common job for diesel compression test with wide range of adapters.
•Provided high quality " Hydraulic " gauge with modern design rubber jacket.
•Provided complete details for application vehicle lists.
•Additional clamp-on adapters provide more applications to truck, van, bus, marine and agricultural vehicle.
•Step 1: remove original injector or glow plug.
•Step 2: choose suitable test parts with appropriate length to match original injector / glow plug (Fig. 1)
•Step 3: connect the test adaptor on vehicle.
•Step 4: connect with gauge and start engine for compression testing (Fig. 2).
