Mercedes-Benz & BMW Tools
908-2503

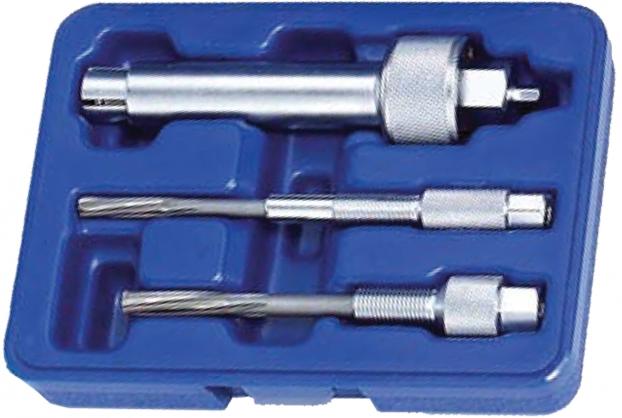

3pcs Pre-Heater Plug Puller Set
•To ream out and clean the bore between the glow plug and pre-combustion chamber.
•908-2511:
For pre-heater plugs with 10mm across flats on Mercedes-Benz CDI engines OM611, 612, 613...etc.
For pulling out pre-heater plugs after have been unscrewed but are still located firmly in their holes.
Length: 135mm.
Drive: 19mm hex.
•908-2512:
Application: Mercedes-Benz 4-valve engines OM604, OM605, OM606 with glow plug threads. Size: M12 x 1.25.
Drive: 13mm hex. Glow Plug: 7mm.
•908-2513: Important if the engine is difficult to start.
Application: Mercedes-Benz CDI engines 4, 5, 6 cylinder OM611, 612, 613 with glow plug threads M10 x 1.
Drive: 10mm hex. Glow Plug: 6mm.
•To ream out and clean the bore between the glow plug and pre-combustion chamber.
•908-2511:
For pre-heater plugs with 10mm across flats on Mercedes-Benz CDI engines OM611, 612, 613...etc.
For pulling out pre-heater plugs after have been unscrewed but are still located firmly in their holes.
Length: 135mm.
Drive: 19mm hex.
•908-2512:
Application: Mercedes-Benz 4-valve engines OM604, OM605, OM606 with glow plug threads. Size: M12 x 1.25.
Drive: 13mm hex. Glow Plug: 7mm.
•908-2513: Important if the engine is difficult to start.
Application: Mercedes-Benz CDI engines 4, 5, 6 cylinder OM611, 612, 613 with glow plug threads M10 x 1.
Drive: 10mm hex. Glow Plug: 6mm.
