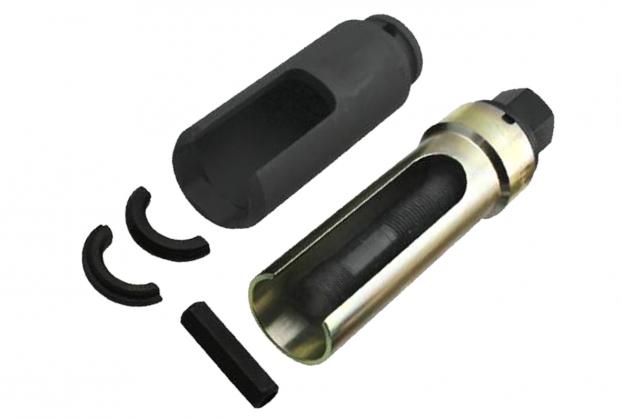

•Specification: Support sleeve, pull spindle, shoulder nut M16 x 1.5.

•Support ring, Special bit insert 10 mm hex, axial bearing, circlip SB35.

•With spindle (German Utility Model).

•Applicable for Mercedes-Benz CDI engines OM 611, 612, 613...etc.

•Special socket insert 29 mm hex.

•With the injection nozzle puller with spindle, injection nozzles that fit very tightly can be pulled out without needing to remove the cylinder block.

•Procedure: screw off the nozzle head, screw in the puller spindle, insert the support ring, push the support sleeve over the spindle and screw on the collar nut then pull out the nozzle by turning the collar nut.
