• The essential tool is for the timing BMW/Mini N47/N57 1.6, 2.0
  and 3.0 diesel chain drive engines.

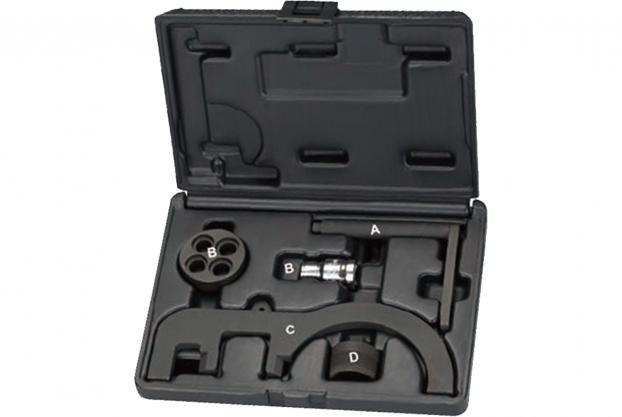

• The kit includes camshaft setting plate, flywheel locking pin and
  crankshaft turning tool, and also includes HP pump sprocket retaining
  tool required during the pump removal / replacement application.

• A.) Flywheel Locking Pin.     OEM: 11.5.320.
• B.) Crankshaft Turning Tool. OEM: 11.6.480.
• C.) Camshaft Setting Plate.  OEM: 11.8.760.
• D.) HP Pump Sprocket Retaining Tool. OEM: 11.8.740.

• Application (Model):---
  BMW: 116d E81/82/87/88 (08-12), 118d E81/82/87/88 (07-14),
  120d E81/82/87/88 (07-14), 123d E81/82/87/88 (07-14),
  316d E90/91/92/93 (09-12), 318d E90/91/92/93 (07-12),
  320d E90/91/92/93 (07-12), 325d E90/91/92/93 (10-14),
  330d/xd E90/91/92/93 (08-14), 520d E60/61 (07-10), 525d F10/11 (10-12),
  530d F10/11 (10-13), 530dGT F07 (09-12), 535d F10/11 (10-12),
  535dGT F07 (10-12), 730d/Ld F01/02/04 (08-12), 740d F01/02/04 (09-12),
  740d xDrive F01/02/04 (09-12), X1 sDrive 18d E84 (09-12), X1
  sDrive 20d E84 (09-12), X1 xDrive 18d E84 (09-14), X1 xDrive 20d E84 (09-12),
  X1 xDrive 23d E84 (09-12), X3 2.0d E83 (07-10), X3 xDrive 18d E83 (08-10),
  X3 xDrive 30d E83 (11-12), X5 3.0d E70 (10-12), X5 xDrive 40d E70 (10-13),
  X6 xDrive 30d E71/72 (10-14), X6 xDrive 40d E71/72 (10-14).
  Mini: Clubman (10-14), Clubvan (12-14), Countryman (10-14),
           Mini (10-14), Paceman (13-14), Roadster (12-14)
• Engine Code: N47 / N47S: C16K1, C16U1, C20K1, C20U1,D20A,
                                               D20B, D20O0, D20T0, D20U0.
                          N57: D30O0, D30O1, D30T0, D30U0.
