•Application: BMW (X5, 3000c.c.) before year 2003.



•The ILLUSTRATION FOR REMOVAL:---

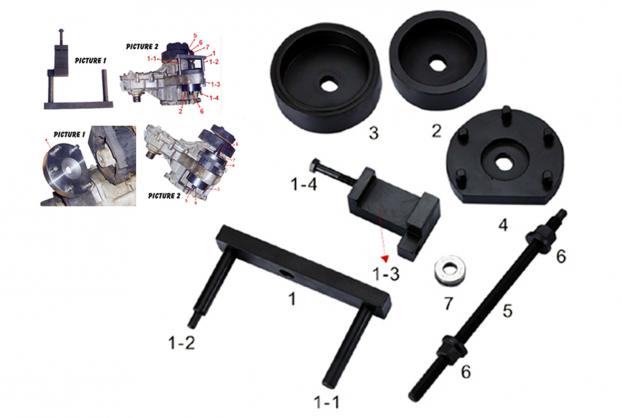

 Step 1: Put accessory No. 1-3 into 1-2.

 Step 2: Clip the accessory No. 1-3 to the essence of the transmission, then put the accessory 1-1 into the outer breach of rubber mount to the central hole of accessory and keep on a straight line. Then insert the accessory No. 5.

 Step 3: Install the bearing and nut on the both sides of accessory No. 5 after adjusting 1-4 and tightening 1-3.

 Step 4: To extract according to picture 2.



•The ILLUSTRATION FOR INSTALL:---

 Step 1: Insert the lock pin of accessory No. 4 into inner Hole of rubber mount.

 Step 2: To complete the installation according to picture 2.
