• For VAG vehicle with 2.0 L pump injector engine with the oval crankshaft toothed belt
  sprocket, e.g. for locking the crankshaft when changing the toothed belt or carrying out
  the engine repair.
• Crankshaft locking tool for the oval sprocket (T10100) at 1 o’clock position.

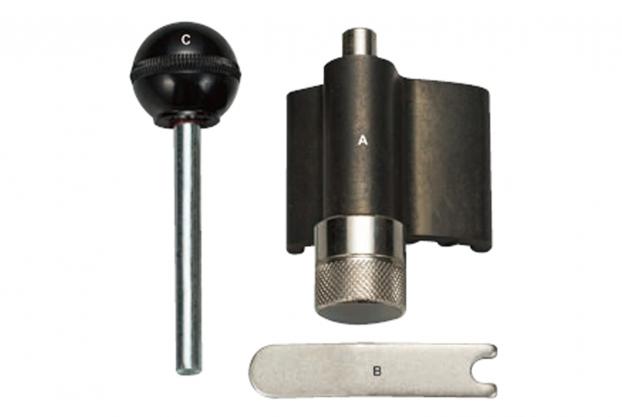

• A.) Crankshaft Locking Tool. OEM: T10100.
• B.) Tensioner Locking Tool. OEM: T10008/310-084/23-058.
• C.) Injection Pump Locking Pin. OEM: 3359/T20102.

• Application: 4 cylinder diesel 1.9 L and 2.0 L engines, 2 and 4 valves.
  Fix the crankshaft in the place at the oval crankshaft when adjusting the valve timing
  (TDC marking at 1 o’clock). Use of the oval belt will be gradually introduced.

• Engine Code: BDK, BJB, BKE, BLB, BMA, BMM, BMP, BMR, BNA, BPW, BRE, BRF,
  BRC, BUZ, BVE, BXE e.g. Caddy (‘06/’05), Touran...etc.
