• For VAG 2.7/3.0 TDi V6 & 4.0/4.2 TDi V8

• This range of the quad cam engine has 4 chains, 4 tensioners, linking the oil pump,
  the crankshaft, the camshaft and the balance shaft together.
• The chain system is located at the rear of the engine (gearbox end).
• The high pressure diesel pump is driven by using a toothed belt from one of camshafts.

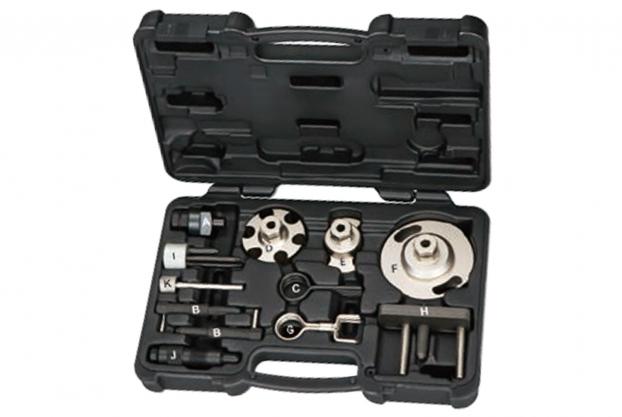

• A.) Crankshaft Adjuster – Pulley End. OEM: T40058.
• B.) Camshaft Locking Pin Set (x2) T40060
• C.) Tensioner Retaining Pin Set (x4)
• D.) Camshaft Adjuster T40062
• E.) Camshaft Sprocket Adjuster T40061
• F.) Camshaft Sprocket Adjuster–Gearbox End. OEM: T40049.
• G.) Tensioner Retaining Pin Set (x3)
• H.) H.P. Pump Sprocket Remover. OEM: T40064.
• I.)  H.P. Pump Locking Pin. OEM: T40135.
• J.) Crankshaft Locking Pin. OEM: 3242.
• K.) Balance Shaft Locking Pin. OEM: 3359.





• Application: VAG 2.7/3.0 TDi V6 and 4.0/4.2 TDi V8 chain drive diesel engines.
• Model: Audi: A4, A5, A6, A6 Allroad, A8, Q5, Q7.
               Volkswagen: Phaeton,Touareg.
• V6 Engine Code: ASB, BKN, BKS, BMK, BMZ, BNG, BPP, BSG, BUG, BUN, CAMA,
  CAMB, CANA, CANB, CANC, CAND, CAPA, CARA, CARB, CASA, CASB, CASC,
  CATA, CCMA, CCWA, CCWB, CDYA, CDYB, CDYC, CEXA, CGKA and CGKB.
  V8 Engine Code: ASE, BTR, BVN, CCFA.
