Petrol Engine Setting / Locking Kit For VAG 1.2, 1.4 TFSi & 1.4, 1.6 FSi - Chain Drive

Volkswagen & Audi Tools

914-5793

← →

Description
Specification

• The timing kit is suitable for 1.2/1.4 TFSi and 1.4/1.6 FSi engines.

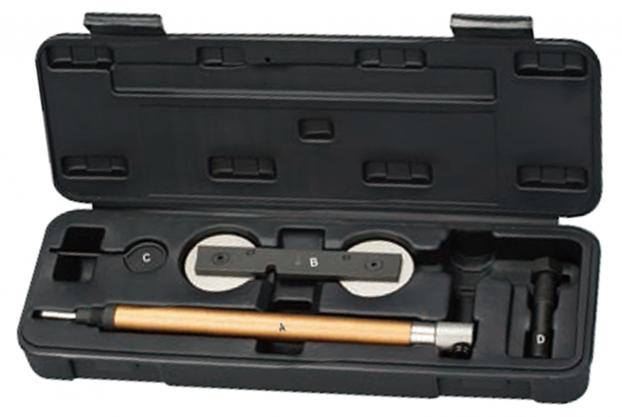

• The kit contains the essential tool for TDC position tool,
camshaft setting plate and tensioner locking pin.

• A.) TDC Position Tool. OEM: T10170.
• B.) Camshaft Setting Plate. OEM: T10171.
• C.) Tensioner Locking Pin. OEM: T40011.
• D.) Crankshaft Locking Pin. OEM: T10340.

• Application (Model):---
Audi: A1 (10 - 12), A3 (03 - 12).
Seat: Altea/Altea XL (08 - 12), Cordoba/Ibiza (08 - 12), Leon (07 - 12),
           Toledo (07 - 09).
Skoda: Fabia II (07 - 12), Octavia II (04 - 12), Roomster (06 - 12),
              Superb II (09 - 12), Yeti (09 - 12)
VW: Caddy (10 - 12), Caddy Maxi (10 - 12), Eos(06 - 12), Golf (03 - 12),
          Golf Plus (03 - 12), Jetta (06 - 2), Passat (05 - 11), Polo (02 - 12),
          Scirocco (08 - 12), Tiguan (07 - 12), Touran (03 - 12).

• Engine Code:---
1.2 TFSi: CBZA, CBZB, CBZC. 1.4 FSi: AXU, BKG, BLN.
1.4 TSi/TFSi: BLG, BMY, BWK, CAVA, CAVB, CAVC, CAVD, CAVE,
CAVF, CAXA, CAXC, CDGA, CSMA.
1.6 FSi: BAG, BLF, BLP, BTS.

• The timing kit is suitable for 1.2/1.4 TFSi and 1.4/1.6 FSi engines.
• The kit contains the essential tool for TDC position tool,
camshaft setting plate and tensioner locking pin.

• A.) TDC Position Tool. OEM: T10170.
• B.) Camshaft Setting Plate. OEM: T10171.
• C.) Tensioner Locking Pin. OEM: T40011.
• D.) Crankshaft Locking Pin. OEM: T10340.

• Engine Code:---
1.2 TFSi: CBZA, CBZB, CBZC. 1.4 FSi: AXU, BKG, BLN.
1.4 TSi/TFSi: BLG, BMY, BWK, CAVA, CAVB, CAVC, CAVD, CAVE,
CAVF, CAXA, CAXC, CDGA, CSMA.
1.6 FSi: BAG, BLF, BLP, BTS.
