• Suitable for the belt tensioning huge range of VAG 1.8/1.8T, 2.0 FSi/TFSi
  twin camshaft engines.
• The belt drive engine has a chain in head to connect two camshafts.
• The kit includes the tool for servicing the chain in head and establishing
  the correct valve/camshaft timing.

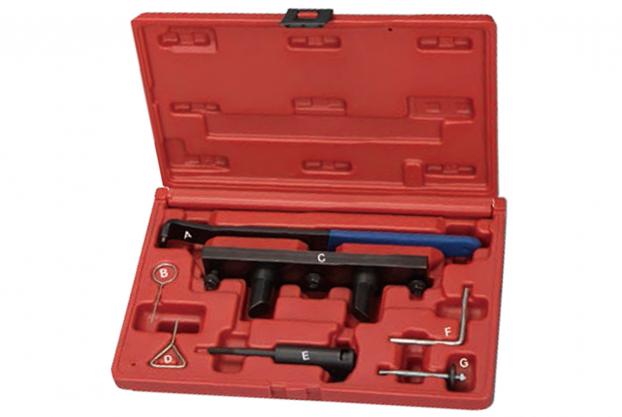

• A.) Belt Tensioner Adjuster/Inlet Camshaft Adjuster. OEM: T10020.
• B.) Belt Tensioner Locking Pin.  OEM: T40011.
• C.) Camshaft Positioning Plate. OEM: T10252.
• D.) Belt/Chain Tensioner Locking Pin. OEM: T10115.
• E.) Chain Tensioner Retainer. OEM: 3366.
• F.) Auxiliary Belt Tensioner Locking Pin. OEM: T10060/T10060A.
• G.) Belt/Chain Tensioner Bolt. OEM: T10092.

• Application (Model): Audi: A3 (96-09), A4 (94-08), A6 (95-11), S3 (99-08), TT (98-12).
  Seat: Alhambra (97-10), Altea/Altea XL (06-09), Cordoba (99-02), Exeo (09-10),
           Ibiza (99-02), Leon (99-12), Toledo (99-09).
  Skoda: Octavia/Octavia Tour (98-10), Octavia II (04-09).
  Volkswagen: Beetle (99-11), Bora (97-04), Eos (06-10), Golf (97-12), Golf Plus (05-09),
                       Jetta (05-09), Passat (96-10), Scirroco (09-12), Sharan (97-10),
                       Touran (03-09).

• Engine Code:---
  1.8: ADR, AFY, AGN, APG, APT, ARG, AVV, AJP.
  1.8T: AEB, AGU, AJH, AJL, AJQ, AMK, AMU, ANB, APP, APU, APX, APY, AQA, AQX,
            ARX, ARY, ARZ, AUM, AUQ, AVC, AWC, AWU, AYP, BAM, BFV, BVP, BVR.
  2.0 FSi: AXW, BHD, BLR, BLX, BLY, BMB, BVX, BVY, BVZ.
  2.0 TFSi/S/R/TSi: AXX, BPY, BWA, BGB, BPG, BPJ, BUL, BWE, BWT, BYK, BHZ,
                                 BZC, BWJ, BYD, CDLA, CDLB, CDLC, CDLD, CDLF, CDMA.
