• For alignment of the cam and the crankshaft, and also alignment of the cam and the
  crankshaft with the cam cover.
• Tool uses for alignment of the camshaft & the crankshaft on in-line 4, 5 & 6 cylinders.
• Twin cam motor through 2006. Maybe use to align the camshaft w/ the cam cover.

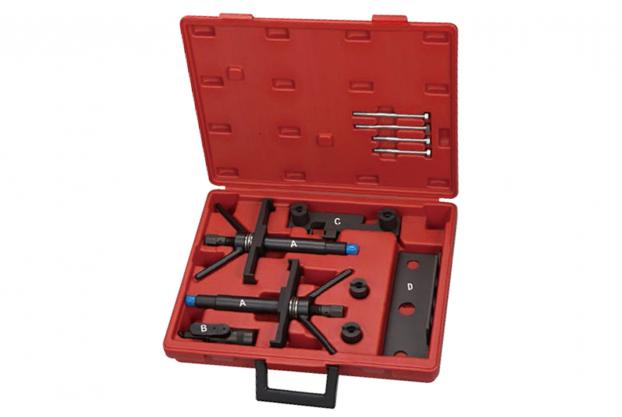

• A.) Angled Plate. OEM: 999 5453.
• B.) Pin. OEM: 999 5451.
• C.) Jig. OEM: 999 5452.
• D.) Press Tool. OEM: 999 5454.

• Application (Model): Volvo: 850, 960, S40, S70 and S90.

• Angled Plate (with hole in it): Engine Code: B4164S, B4184S, B4194T, B4204S,
  B4204T, B5202FS, B5204FS, B5204FT, B5204T2, B5204T3, B5234FS, B5234FT,
  B5234T2, B5234T3, B5234T4, B5234T5, B5234T6, B5234T7, B5252FS,
  B5254FS LH 3.2, B5254FS M4.3, B5254FS M 4.4, B5254T, B63004FS, B6304FS2,
  B6304GS, D4192T2. 700, 800, 850, 900, 960, C70 CONV, C70 Coupe, S40 (-04),
  S70, S90, V40, V70 (-00), V70 XC (-00), V90.
• Pin: Engine Code: B41645, B4164S2, B4184S, B4184510, B4184S2, B4184.
  700, 800, 850, 900, 960, C70 CONV, C70 Coupe, S40, S60, S70, S80, S90, V40,
  V70 2000, V70.
• Jig: Engine Code: B4204T3, B4204T3 (USA)(CDN), B4204T4, B4204T5B5202FS,
  B5204FS, B5204FT, B5204T2, B5204T3, B5204T4, B5204T5, B5234FS, B5234FT,
  B5234T2, B5234T3, B5234T4, B5234T5, B5234T6, B5234T7, B5234T8, B5234T9,
  B5244S, B5244S2, B5244S4, B5244S5, B5244S6, B5244S7, B5244SG, B5244SG2,
  B5244T, B5244T2, B5244T3, B5244T4, B5244T5, B5244T7, B5252FS,
  B5254FS LH3.2, B5254FS M 4.3, B5254FS M 4.4, B5254S DENSOB5254T, B5254T2,
  B5254T3, B5254T4, B6244FS, B6254FS, B6254GS, B6284T, B6294S, B6294S,
  B6294T, B6304FS, B6304FS2, B6304GS, B6304S3, GB5252S.
  700, 800, 850, 900, 960, C70 CONV, C70 Coupe, S40 (-04), S40 (04-), S60, S70, S80,
  S90, V40, V50, V70 (-00), V70(00-), V70XC (-00), V70 XC (01-)/XC70, V90, XC90.
• Press Tool: Engine Code: B4164S, B1464S2, B41845S, B4184S10, B418452,
  B4184S3, B4184S9, B4184SJ, B4194T, B4194T2, B4204S, B420452, B4204T,
  B4204T2, B42042T2, CVVT, B4204T3, B4204T3 (USA)(CDN), B4204T4, B4204T5,
  B5202FS, B5204FS, B5204FT, B5204T2, B5204T3, B5204T4, B5204T5, B5234FS,
  B5234FT, B5234T2, B5234T3, B523T4, B5234T5, B5234T6, B5234T7, B5234T8,
  B5234T9, B5244S, B5244S2, B5244S4, B5244S5, B5244S6, B5244S7, B5244SG,
  B5244SG2, B5244T, B5244T2, B5244T4, B5244T5, B5244T7, B5252FS,
  B5254FS LH 3.2, B5254FS M 4.3, B5254FS M 4.4, B5254S DENSO, B5254T2,
  B5254T4, B6284T.
  700, 800, 850, 900, 960, C70 CONV, C70 Coupe, S40 (-04), S40 (04-), S60, S70, S80,
  S90, V40, V50, V70 (-00), V70 (00-), V70XC (-00), V70 SC (01-), XC70, V90, XC90.
