• This set allows a damaged free mounting of the flexible multi-ribbed belt.
• The types of belt do not require an idler, but these special tools are for a
  convenient and gentle assembly.

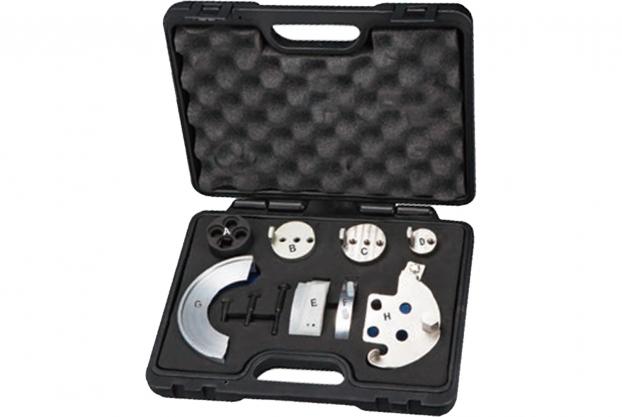

• A.) Double Adjuster.
• B.) Three Hole Support Block.
• C.) Three Hole Support Block.
• D.) One Hole Support Block.
• E.) Belt Dilator.
• F.) Arc Fixed Plate.
• G.) Semicircular Plate.
• H.) Dilator.



• Item A: BMW 325, 330, 335, 525, 530, 535, 730. 2.5D: M57N256D2.
  3.0D: M57306D3, M57306D4, M57306D5, M57D30A, M57N206D3,
  M57N2306D3, M56N306D2, M57N306D3, M57N306D5, N57N306D2,
  N57N306D3.

• Item B: Audi: A3. 1.6D: CAYB, CAYC. 2.0D: AZV, BKD, BMM, BMN, CBAA,
                        CBAB, CBBB, CFFA, CFFB, CFGB.
  Seat: Altea, lbiza. 1.6D: CAYB, CAYC. 2.0D: CEGA.
  Skoda: Octavia, Yeti. 1.6D: CAYC. 2.0D: CBDB, CEGA.
  Volkswagen: Eos, Golf, Passat, Polo, Scirocco. 1.6D: CAYA, CAYB, CAYC.
                       2.0D: CBAA, CBAB, CBAC, CBBB, CBDA, CBDB, CBDC, CFFA,
                                 CFFB, CJAA.

• Item C: BMW 18, 120, 318, 320, 325, 330, 335, 520, 525, 530, 535, 635, 720,
                          X3, X5. 2.0D: M47N. 2.5D: M57N256D2. 3.0D: M57306D3,
                          M57306D4, M57306D5, M57D30A, M57N206D3, M57N2306D3,
                          M56N306D2, M57N306D3, M57N306D5, N57N306D2,
                          N57N306D3, M57N, N57N.
  Chrysler (USA): Grand Voyager, Voyager. 2.5D: EDK, ENC, ENJ. 2.8D: ENR.
  Ford (Europe): C-Max, Focus C-Max, Mondeo, Tourmeo, Transit. 1.4: C24HDEZ,
                           ZH14ASDA. 1.6: C16HDDZ, C16HDEZ, ZH16HWDA, ZH16HXDA.
                           1.8: CH18HDEA, ZH18CSDA, ZH18Q7DA, ZH18Q7DE, ZH18Q7FA,
                           ZH18QQDA, ZH18QQDB. 2.0: C20HDEA, C20HDEH, ZH20AODA,
                           ZH20AODB, ZH20HDEA. 2.0D: ABFA, ABFB, D3FA, F3FA, FIFA.
                           2.2D: P8FA, PGFA, QVFA, QWFA.
  Mazda: 3, 5, Axela. 1.8: L823. 2.0: LF50, LF5H, LF5W, LF72, LFD7, LFF7, LFN7,
               LFN8, LFZ2.
  Iveco: Daily. 2.3D: F1AE. 3.0D: F1CE.
  Mercedes-Benz: Sprinter, Viano, Vito. 3.0D: 642990, 642992, 642993.
  Peugeot: 206, 207, 307, Boxer. 1.4D: DV4TD, DV4ATED, DV4ATED4.
                  1.6D: DV6ATED4, DV6TED4. 2.2D: 22DT. 3.0D: F30DT.
  Citroen: C2, C3, C4, Jumper, Relay. 1.4D: DV4TD, DV4ATED, DV4ATED4.
                1.6D: DV6ATED4, DV6TED4. 2.2D: 22DT. 3.0D: F30DT.
  Fiat: Albea, Doblo, Ducato, Fiorino, Fiorino Qubo, Linea, Palio, Siena,Stilo,
          Strada Pick up. 1.6: 182B6000. 1.3JTD: 188A, 199A, 223A.
          2.2D: 4HV. 2.3D: F1AE. 3.0D: F1ACE.
  Volvo: C30, S40, V50. 1.6: B4164S3. 1.8: B4118S8, B4184S11. 2.0: B4204S3.

• Item D: Fiat: Doblo, Marea, Multipla.1.6: 182A4000, 182B5098, 182B6000,
                        182B6000LPG, 186A3000LPG, 186A4000.
  Ford (Europe): Courier, Fiesta, Fusion. 1.2: ZH12FUJA, ZH12FUJB, ZH12M7JB.
                          1.4: ZH14FXJA, ZH14FXJB. 1.6: ZH16FYDC, ZH16FYJA,
                                 ZH16FYJB.
  Mazda: 2. 1.2: FUJA. 1.4: FXJA. 1.6: FYJA.
  Lancia: Lybra. 1.6: 182B6000.

• Item E & F: Citroen: Jumper, Relay. 2.2D: 22DT.
  Fiat: Ducato. 2.2D: 4HF.
  Ford: Transit, Transit Tourneo. 2.2D: C22DDOP, PGFA, P8FA, QVFA, QWFA
  Mitsushi: ASX. 1.8D: 4N1. Peugeot: Boxer. 2.2D: 22DT.

• Item G: Ford (Europe): C-Max, Courier, Fiesta, Focus, Fusion.
                                        1.2: C12HM7AD, C12LM7AA, ZH12FUJA, ZH12FUJB,
                                        ZH12M7JB. 1.4: C14HDEZ, C14HHCDB, ZH14ASDA,
                                        ZH14FXDA, ZH14FXDB, ZH14FXDC, ZH14FXDD,
                                        ZH14FXJA, ZH14FXJB. 1.6: 16HDEZ, CH16HDEZ,
                                        C16HHDEY, ZH16FYDA, ZH16FYDB, ZH16FYDC,
                                        ZH16FYDD, ZH16FYDH, ZH16FYJA, ZH16FYJB,
                                        ZH16HWDA, ZH16HXDA.
  Volvo: C30, S40, V50. 1.6: B4164S3.
  Mazda: 2. 1.2: FUJA. 1.4: FXJA. 1.6: FYJA.
