• The updated kit is suitable for timing belt replacement on 1.4, 1.6, 1.8 and 2.0 engines
  fits in Renault vehicle.
• The engine requires use of the associated tool, the camshaft sprocket holding tool,
  to loosen the camshaft sprocket bolts and the timing belt guide roller wrench.
• The kit features the updated camshaft setting plate which avoids the camshaft position
  sensor on later 1.4 and 1.6 engines.

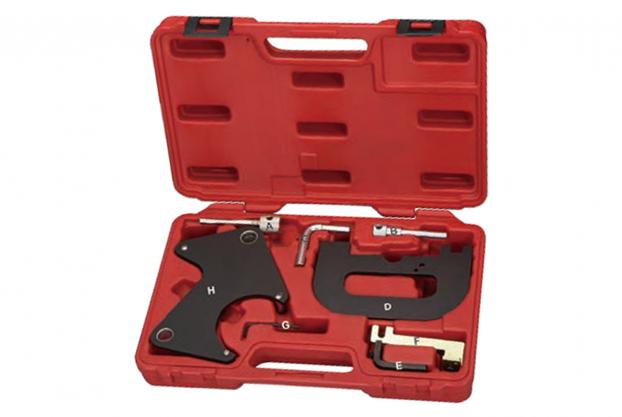

• A.) Crankshaft Locking Pin (1.4/1.6). OEM-Renault / Nissan: MOT 1489.
• B.) Crankshaft Locking Pin (1.8/2.0).
        OEM-Renault / Nissan: MOT 1054. OEM-Vauxhall / Opel: KM-6031.
• C.) Crankshaft Locking Pin (1.8/2.0). OEM-Renault / Nissan: MOT 861
• D.) Camshaft Setting Plate.
        OEM-Renault / Nissan: MOT 1496. OEM-Vauxhall / Opel: KM-6233.
• E.) Camshaft Plate Bracket (L shape).
        OEM-Renault / Nissan: MOT 1496. OEM-Vauxhall / Opel: KM-6233.
• F.) Camshaft Plate Bracket (Extend Reach). OEM-Renault / Nissan: MOT 1750.
• G.) Hex Key.
• H.) Camshaft Sprocket Holding Tool. OEM-Renault / Nissan: MOT 1490-01.

• Renault:---
  Clio II (99-06): K4J 1.4 16v 700. K4M 1.6 16v 700, 744, 804. F4P 1.8 16v 720.
                          F4R(t) 2.0 16v 700, 776.
  Clio III/Sport (05-12): K4J 1.4 16v 710. K4M 1.6 16v 701, 745, 812. F4P 1.8 16v 722.
                                    F4R(t) 2.0 16v 701, 780.
  Espace/Grand Espace (98-02):     K4J 1.4 16v 711. K4M 1.6 16v 704, 746, 813.
                                                         F4P 1.8 16v 760. F4R(t) 2.0 16v 712, 784.
  Espace/Grand Espace IV (02-10): K4J 1.4 16v 712. K4M 1.6 16v 706, 748, 824.
                                                         F4P 1.8 16v 770. F4R(t) 2.0 16v 713, 786.
  Kangoo/Trekka (01-09): K4J 1.4 16v 713. K4M 1.6 16v 708, 750, 848.
                                         F4P 1.8 16v 771. F4R(t) 2.0 16v 714, 787.
  Laguna (98-01):      K4J 1.4 16v 714. K4M 1.6 16v 709, 752, 854. F4P 1.8 16v 722.
                                  F4R(t) 2.0 16v 715, 790.
  Laguna II (01-07):   K4J 1.4 16v 715. K4M 1.6 16v 710, 753, 858. F4P 1.8 16v 773.
                                  F4R(t) 2.0 16v 720, 791.
  Laguna III (07-10):  K4J 1.4 16v 730. K4M 1.6 16v 711, 760, 866. F4P 1.8 16v 774.
                                  F4R(t) 2.0 16v 722, 792.
  Megane (99-03):     K4J 1.4 16v 732. K4M 1.6 16v 712, 761. F4P 1.8 16v 775.
                                  F4R(t) 2.0 16v 730, 794.
  Megane II (02-10):  K4J 1.4 16v 740. K4M 1.6 16v 714, 764. F4R(t) 2.0 16v 732, 795.
  Megane III/Sport (08-13): K4J 1.4 16v 750. K4M 1.6 16v 716, 766.
                                           F4R(t) 2.0 16v 740, 796.
  Megane/Scenic (99-00):   K4J 1.4 16v 770. K4M 1.6 16v 718, 782.
                                           F4R(t) 2.0 16v 741, 797.
  Modus (04-08): K4J 1.4 16v 780. K4M 1.6 16v 720, 790. F4R(t) 2.0 16v 744, 800.
  Modus/Grand Modus II (08-12):  K4M 1.6 16v 724, 791. F4R(t) 2.0 16v 746, 810.
  Scenic/RX4 (99-03):                    K4M 1.6 16v 730, 792. F4R(t) 2.0 16v 764, 811.
  Scenic/Grand Scenic II (03-09):  K4M 1.6 16v 732, 794. F4R(t) 2.0 16v 765, 820.
  Twingo II/Sport (08-12): K4M 1.6 16v 740, 743, 801, 802.
                                         F4R(t) 2.0 16v 771, 774, 870, 874.
  Trafic II (01-11): K4M 1.6 16v 734, 800. F4R(t) 2.0 16v 770, 830.

  Nissan Kubistar X76 (03-09): K4M 1.6 16v 752. F4R(t) 2.0 16v 720.
              Primaster X83 (02-11): K4M 1.6 16v 753. F4R(t) 2.0 16v 722, 820.
  Vauxhall / Opel Vivaro (01-11). F4R(t) 2.0 16v 720, 722, 820.
