• This kit is originally specified for the engine design before 2003.
• However, some components are used on engine up to 2010.

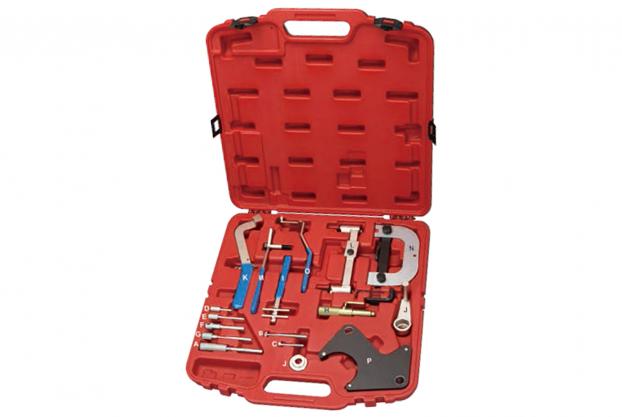

• A.) Crankshaft Locking Pin (1.4/1.6). OEM: MOT 1489.
• B.) Tensioning Adjustment Screw M6 x 45 mm.
• C.) Tensioning Adjustment Screw M8 x 70 mm.
• D.) Crankshaft Timing Pin. OEM: MOT 910.
• E.) Injection Pump Setting Pin. OEM: MOT 910.
• F.) Flywheel Locking Pin. OEM: MOT 1054.
• G.) Flywheel Locking Pin. OEM: MOT 1318.
• H.) Flywheel Locking Pin. OEM: MOT 1340.
• I.)  Tension Wrench. OEM: MOT 1135-01.
• J.) Tensioner Adjuster. OEM: MOT 1386.
• K.) Tensioner Adjuster. OEM: MOT 1348.
• L.) Camshaft Locking Tool. OEM: MOT 1337.
• M.) Tensioner Adjuster.OEM: MOT 1312.
• N.) Camshaft Locking Tool. OEM: MOT 1496.
• O.) Tensioner Adjuster. OEM: MOT 1384.
• P.)  Camshaft Sprocket Alignment Tool. MOT 1490-01.



• Application: Petrol: 1.2L, 1.4L, 1.7L plus twin cam 1.4L, 1.6L, 1.8L, 2.0L 16v
                       and 2.2L 8v plus 2.5 20v.
• Model: Clio 1.2/1.4, Clio 1.4/1.6/1.8 16v, Clio Sport 2.0 16v, Clio Williams 2.0 16v,
               Espace 2.0, Espace 2.0 16v, Espace 2.2 TD, Express 1.4, Extra 1.4,
               Kangoo 1.2/1.4, Laguna 1.6 16v, Laguna 1.8/2.0, Laguna 1.8/2.0 16v,
               Laguna 2.2 D/TD, Laguna 2.5 D/TD, Megane 1.4/1.6/2.0/ 16v,
               Megane 2.5D/TD, R19 1.4, R19 1.4 Eco, R19 1.8 16v, Rapid 1.4,
               Safrane 2.0 16v, Safrane 2.2 TD, Safrane 2.5 20v, Scenic 1.4/1.6/2.0 16v,
               Trafic 2.5D, Twingo 1.2.
• Diesel: 1.9L D, TD, DTi, 2.1L & 2.2L D, TD, 2.5L D, TD, 2.8L D.
• Engine Code: F4P, F4R, F4J, K4M (Clio III 813 Engine (03-).
