Petrol Engine Setting / Locking Kit | AUTOMASTER AUTO TOOLS CO., LTD.

European Cars Repair Tools

914-5741

Petrol Engine Setting / Locking Kit

← →

Description
Specification

• For Fiat / Ford / Lancia 1.2, 1.4 8V - Belt Drive

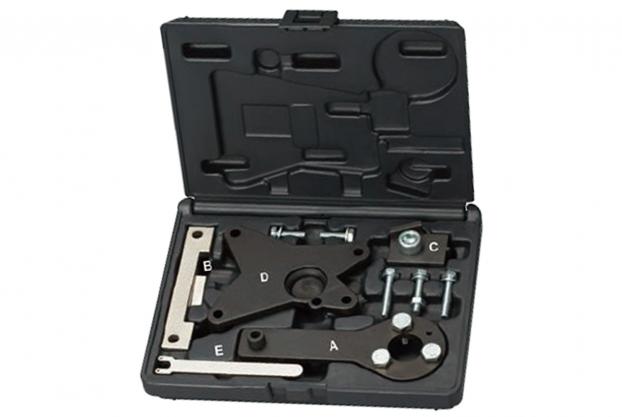

• The kit consists of camshaft setting tool, crankshaft locking tool and tensioner
adjuster for 1.2 engine, camshaft sprocket locking tool and the alignment fixture
for the camshaft sensor on 1.4 VVT engine.

• A.) Crankshaft Locking Tool (Completed with M6 x 30 Hex Cap Screw x1,
        M8 x 16 Hex Cap Screw x3).
        OEM-Fiat/Lancia: 2.000.004.500. OEM-Ford: 303-1480.
• B.) Camshaft Setting Tool. OEM-Fiat/Lancia: 2.000.004.400. OEM-Ford: 303-1479.
• C.) Camshaft Sprocket Locking Tool. OEM-Fiat/Lancia: 2.000.004.200.
                                                              OEM-Ford: 303-1477.
• D.) Camshaft Cover Aligner (Completed with M6 x 20 Hex Cap Screw x2,
        M6 x 35 Hex Cap Screw x2, M6 Washer x5, M6 Nut x1).
        OEM-Fiat/Lancia: 2.000.004.300. OEM-Ford: 303-1478.
• E.) Tensioner Adjuster. OEM-Fiat/Lancia: 1.860.987.000.

• Application (Model):---
Fiat: 500(07-12), Doblo/Cargo (05-10), Grande Punto (07-12), Idea (04-12),
Linea (07-11), Panda EVO2 (05-11), Punto EVO (09-12).
Ford: Ka (09-12).
Lancia: Ypsilon (06-11), Musa (05-12).

• Engine Code:---
Fiat: 1.2/1.2 Dualogic: 169A4.000,188A4.000(EVO2 only),199A4.000.
1.4/1.4 Bi - fuel LPG/1.4 Natural Power CNG: 199A7.000, 350A1.000.
Ford: 1.2 Duratec: 169A4.000(FP4).
Lancia: 1.4/1.4 Bi - fuel LPG:350A1.000.

• For Fiat / Ford / Lancia 1.2, 1.4 8V - Belt Drive
