914-5781

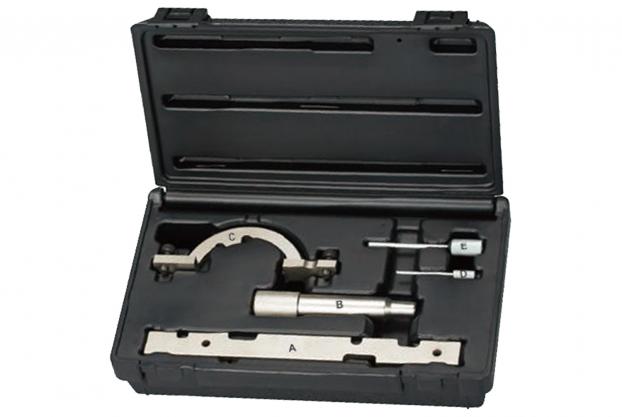

Petrol Engine Setting / Locking Kit

← →

Description
Specification

• For Vauxhall / Opel / Suzuki 1.0/1.2/1.4 - Chain Drive

• Include the locking tool is for 1.0, 1.2, 1.4 Ecotec/Ecoflex (code X and Z)
chain engines, and also includes the timing disc position gauge for the
timing sensor on the inlet camshaft.

• A.) Camshaft Setting Plate.
        OEM-Vauxhall / Opel: KM-953. OEM-Suzuki: 09919-58310.
• B.) Crankshaft Locking Pin.
        OEM-Vauxhall / Opel: KM-952 OEM-Suzuki: 09912-38310.
• C.) Camshaft Sensor Alignment Fixture.
        OEM-Vauxhall / Opel: KM-954 OEM-Suzuki: 09919-08310.
• D.) Chain Tensioner Locking Pin.
        OEM-Vauxhall / Opel: KM-955 OEM-Suzuki: 09919-58320.
• E.) Auxiliary Belt Tensioner Locking Pin. OEM-Vauxhall / Opel: KM-6130.

• Application (Model):---
Vauxhall / Opel: Agila (00-08), Astra - G (98-06), Astra - G Classic II (03-10),
                            Astra-H (04-11), Combo (04-12), Corsa-B (97-00), Corsa-C (00-07),
                            Corsa-D (06-12), Meriva-A (04-10), Tigra-B(04-10).
Suzuki: Wagon R(05-08). Engine Code: 1.0 12v/Ecoflex: X10XE, Z10XE, Z14XEP.
               1.2 16v: X12XE, Z12XE, Z14XEL. 1.4/Ecoflex: Z14XEL, Z12XEP.

• For Vauxhall / Opel / Suzuki 1.0/1.2/1.4 - Chain Drive

• Include the locking tool is for 1.0, 1.2, 1.4 Ecotec/Ecoflex (code X and Z)
chain engines, and also includes the timing disc position gauge for the
timing sensor on the inlet camshaft.
