• The combination kit of setting and locking tool is suitable for a wide range of Ford
  petrol and diesel engines.
• Suitable for the engine fits in Land Rover, Mazda, PSA, Suzuki and Volvo vehicles.

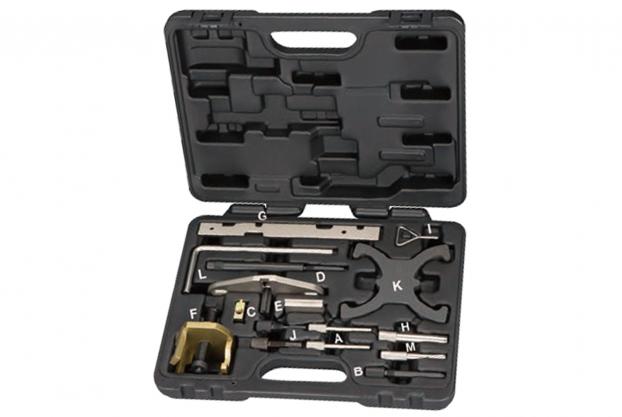

• Kit consists of the camshaft, the crankshaft/flywheel and the tensioner locking tools,
  and plus camshaft sprocket remover.

• A.) Crankshaft/HP Pump Locking Pin (2 per kit). 303-732 (21-260).
• B.) Crankshaft Location Pin. OEM: 303-620 (21-163).
• C.) Crankshaft Location Pin. OEM: 303-507 (21-210).
• D.) Crankshaft Location Pin. OEM: 303-193 (21-104).
• E.) Flywheel Locking Tool–Base Plate. 303-393A (21-168).
• F.) Camshaft Sprocket Remover. OEM: 303-651 (21-229).
• G.) Camshaft Setting Plate. OEM: 303-376 (21-162B).
• H.) Flywheel Locking Pin 303-734 (21-262).
• I.)  Tensioner Locking Pin. 303-1054.
• J.) Crankshaft Location Pin. 303-748.
• K.) VCT Setting Plate. OEM: 303-1097.
• L.) Flywheel Locking Pin. OEM: 303-1059.
• M.) Camshaft Locking Pin. OEM: 303-735 (21-263).

• Ford C-MAX (07-12), Cougar (98-01), Courier (00-02), Fiesta (95-12), Focus (98-12),
           Focus C-MAX (03-07), Fusion (02-12), Galaxy (06-12), Grand C-MAX (10-12),
           Kuga (08-12), Maverick (01-07), Mondeo (93-12), Puma (97-02), SMAX (06-12),
           Tourneo Connect (02-12), Transit (06-11), Transit Connect (02-12).

• Engine Code:---
  1.25 16v Belt: DHA, DHB, DHC, DHD, DHE, DHF, DHG, F8JA, F8JB, FUJA, FUJB,
                        M7JA, M7JB, SNJA, SNJB, STJA, STJB.
  1.4 16v Belt: ASDA, ASDB, FHA, FHB, FHD, FHF, FXDA, FXDB, FXDC, FXDD,
                        FXJA, FXJB, FXJC, SPJA, SPJC, RTJA, RTJB, UTJA.
  1.4D TDCi Belt: F6JA, F6JB, F6JC, F6JD.
  1.6 16v Belt: FYDA, FYDB, FYDC, FYDD, FYDH, FYJA, FYJB, FYJC, HWDA,
                        HWDB, L1F, L1J, L1L, L1N, L1Q, L1T, L1V, L1W, SHDA, SHDB, SHDC.
  1.6Ti-VCT Belt: HXJA, HXJB, HXDA, IQDA, IQDB, PNBA, PNDA, RHBA, SIDA.
  1.6 16v Ecoboost Belt: JQDA, JQDB, JTDA, JTDB.
  1.6D TDCi Belt: G8DA, G8DB, G8DD, GPDA, HHDA, HHDB, HHJA, HHJB, HHJC,
                              HHJD, HHJE, HHJF, TZJA.
  1.6D TDCi Econetic Belt: HHJD, G8DD, GPDA.
  1.8 16v Belt: EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYPA, EYPC,
                         RKA, RKB, RKF, RKH, RKJ, RKK, EYDL.
  1.8 16v Chain: CDBB, CGBA, CGBB, CHBA, CHBB, CSDA, CSDB, Q7DA, QQDA,
                            QQDB, QQDC.
  1.8D TDCi Belt: BHPA, F9DA, F9DB, FFBA, FFDA, FFWA, HCPA, HCPB, KHBA,
                              KKDA, KKDB, P7PA, P9PA, P9PB, QYBA, QYWA, R2PA, R3PA,
                              RWPA, RWPC, TYWA.
  1.8D TDDi Belt: BHDA, BHDB, C9DA, C9DB, C9DC, BHPA.
  1.8D TCi Belt: RFN.
  1.8D Turbo Belt: C9DC, RTN, RTQ, RTP.
  2.0 16v Belt: ALDA, EDBA, EDBB, EDBC, EDBD, EDDB, EDDC, EDDD, EDDF,
                        HMDA, NGA, NGB, NGC, NGD, YF.
  2.0 16v Chain: AOBA, AOBC, AODA, AODB, AODE, AOWA, AOWB, CJBA, CJBB,
                            N4JB, SYDA, TBBA, TBBB, TBWA, TBWB. 2.0D TDCi Belt: AZBA,
                            AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG,
                            IXDA, KLBA, LPBA, QXBA, QXBB, QXWA, QXWB, TXBA, TXDA,
                            TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA,
                            UKBA, UKDA, UKDB, UKWA.
  2.2D TDCi Belt: KNBA, Q4BA.
  2.3 16v Chain: GZFA, GZFB, GZFC, SEBA, SEWA, GZ.
