• The kit covers the timing belt replacement on Ford 1.6 duratec engine
  with the variable valve timing.
• Camshaft, crankshaft and flywheel tools are suitable for many other
  petrol and diesel Ford engines.

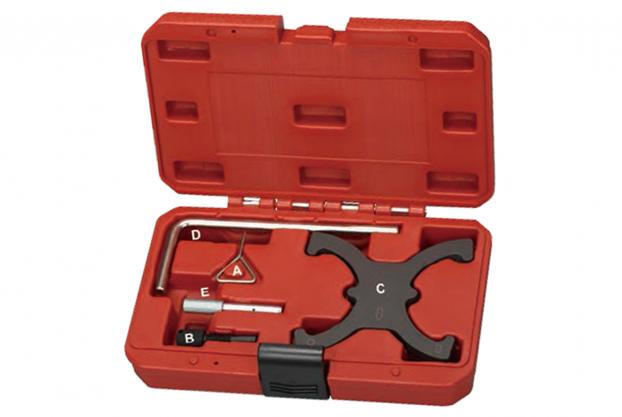

• A.) Tensioner Pulley Locking Pin.      OEM: 303 1054.
• B.) Crankshaft Locking Tool.              OEM: 303 748.
• C.) Camshaft Sprocket Locking Tool. OEM: 303 1097.
• D.) Flywheel Timing Pin.         OEM: 303 1059.
• E.) Camshaft/Crankshaft Pin. OEM: 303 735.

• Application: Ford Focus/C Max 1.6 VCT-Ti (03-09).
• Engine Code: HXDA.
• Note: Camshaft Locking Tool 303 1097; when fitted to the engine,
             ensure the arrow is facing upward, with the rectangle on the
             left and the circle on the right.

• This five piece set is the essential for replacing the cam belt on
  Ford Focus / C Max 1.6 Ti-VCT (03-09) with engine code: HXDA (2003-2007)
  plus 2.0 TDCi with engine code: G6DA, G6DB, G6DC 2003-2007.
• The set includes camshaft sprocket locking tool, tensioner pulley locking pin,
  flywheel timing pin, crankshaft pin, crankshaft locking tool, and also required
  Flywheel Locking Tool and adaptor.
