General Repair Tools

995-7886 / 995-7887 / 995-7888 / 995-7889

UWG Hollow Jacks
← →
Qty :
Add to Inquiry List

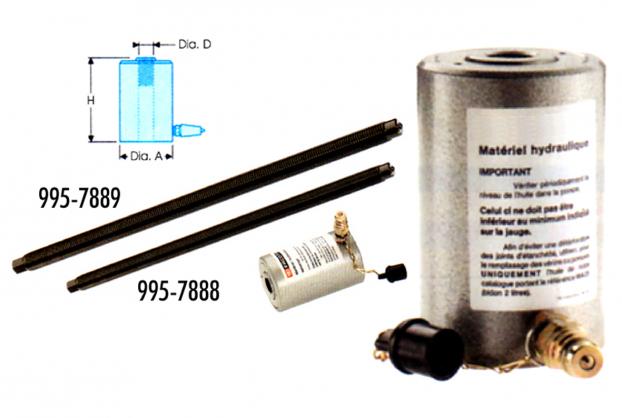

995-7886~995-7887  UWG Hollow Jacks
•Style No.  Force(KN)  Travel(mm)  H(mm)  A(mm)  D(mm)  Oil Capacity (cm3)
 995-7886      200             50             160        100       23.8              141.5
 995-7887      300             60             177        115       29.0              257.4

995-7888~995-7889  Center Screw For UWG Hollow Jacks
•Style No.  Length(mm)  Hexagon Drive  Dia.(mm)  Weight(kg)
 995-7888       590                    21             27 x 300      2.3
 995-7889       780                    25             33 x 350      4.5
•For use with pullers.
•Plunger with tapped through-hole to take a centre screw for pressure or pulling applications.
•Actuated by 700 bar pump.
•Caps clip into plunger, allowing use as lifting jack.

995-7886~995-7887  UWG Hollow Jacks
•Style No.  Force(KN)  Travel(mm)  H(mm)  A(mm)  D(mm)  Oil Capacity (cm3)
 995-7886      200             50             160        100       23.8              141.5
 995-7887      300             60             177        115       29.0              257.4

995-7888~995-7889  Center Screw For UWG Hollow Jacks
•Style No.  Length(mm)  Hexagon Drive  Dia.(mm)  Weight(kg)
 995-7888       590                    21             27 x 300      2.3
 995-7889       780                    25             33 x 350      4.5
•For use with pullers.
•Plunger with tapped through-hole to take a centre screw for pressure or pulling applications.
•Actuated by 700 bar pump.
•Caps clip into plunger, allowing use as lifting jack.
