•Do not use hand tools.

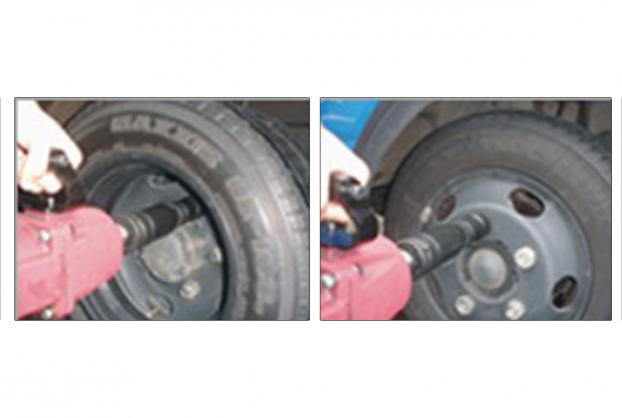

•Use with 1”DR. pneumatic or power impact wrench.

•Set up the working air pressure at 90 PSI (6.2 BAR; 6.3 KG/CM2; 62 PA) and ensure the power delivery of the impact wrench between 1000~1100 Nm (738 ~ 811 Ft/Lbs), the output of the hydraulic torsion dual torque impact sockets will be 500 Nm±10% (369 Ft/Lbs±10%).

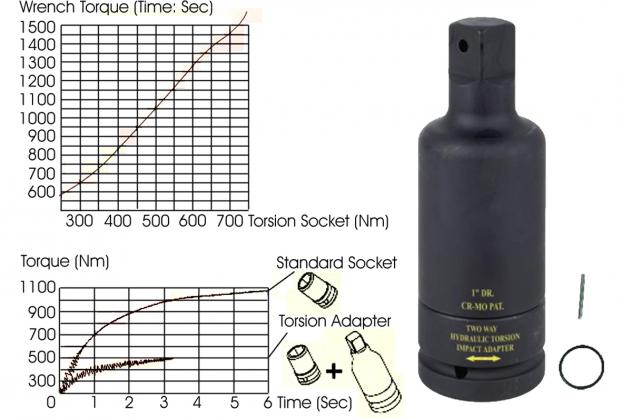

•If other torque / torsion required, please refer to the torque / torsion chart to set up the output of the impact wrench and obtain the require torque / torsion.



•Do not use hand tools.

•Use with 1”DR. pneumatic or power impact wrench.

•Set up the working air pressure at 90 PSI (6.2 BAR; 6.3 KG/CM2; 62 PA) and ensure the power delivery of the impact wrench between 1000~1100 Nm (738 ~ 811 Ft/Lbs), the output of the hydraulic torsion dual torque impact sockets will be 500 Nm±10% (369 Ft/Lbs±10%).

•If other torque / torsion required, please refer to the torque / torsion chart to set up the output of the impact wrench and obtain the require torque / torsion.
