PRODUCTS

Chassis & Undercar Tools

924-1017

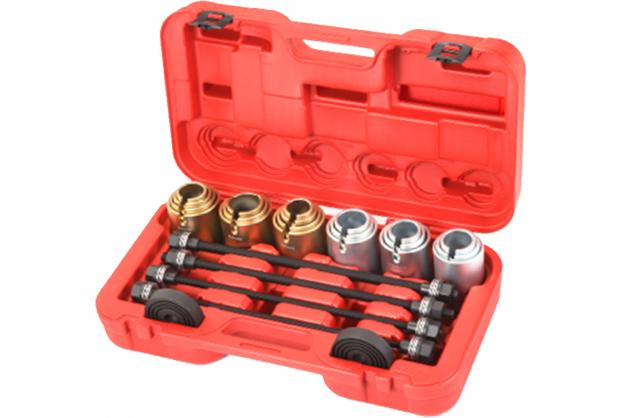

Universal Remove & Install Sleeve Kit (26pcs)
← →
Qty :
Add to Inquiry List

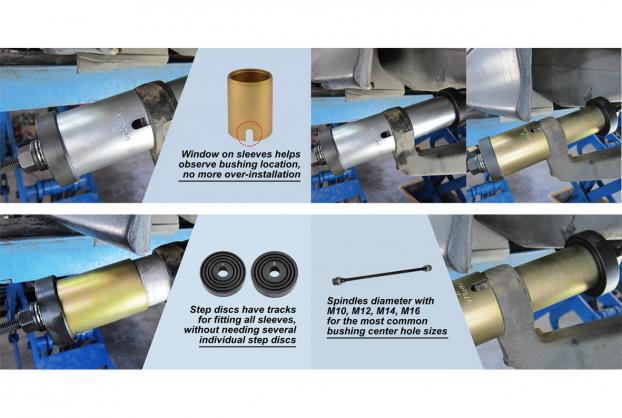

• For removing and installing bushings and bearings.

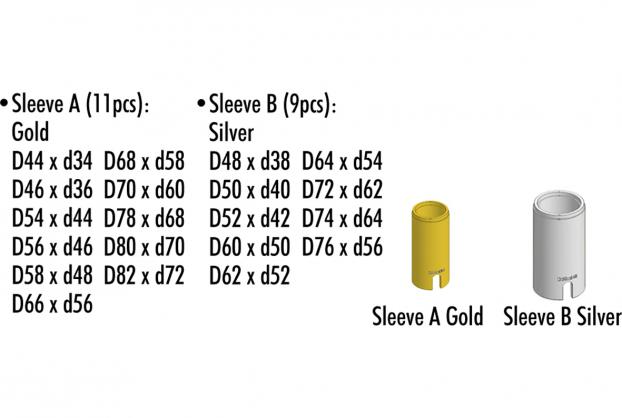

• Equipped with sleeve sizes from 34-66mm (ID) and 44-82mm (OD) with 2mm increments.
• Includes 4 spindles with two 27mm hex nuts:---
  M10 × P1.5, M12 × P2.0, M14 × P2.0 and M16 × P2.5

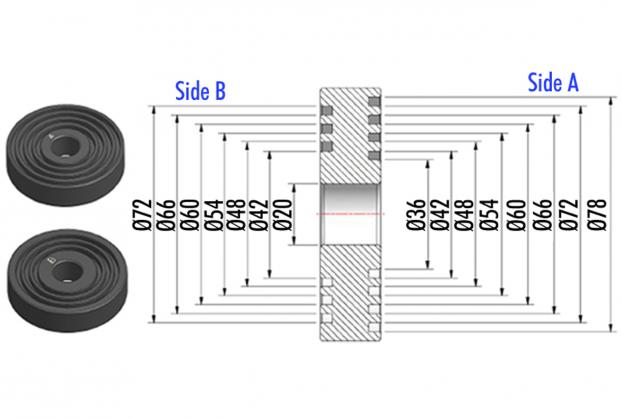

• Provided with two step discs with two sides (A and B sides).
  Discs have tracks for fitting all sleeves, without needing several individual step discs.
• Tool NOT designed to be used with an air/impact wrench.
• Kit included Step Disc, M10 Spindle with two M10 nuts, M12 Spindle with two M12 nuts,
  M14 Spindle with two M14 nuts, M16 Spindle with two M16, Sleeve Ø44 × Ø34,
  Sleeve Ø46 × Ø36, Sleeve Ø48 × Ø38, Sleeve Ø50 × Ø40, Sleeve Ø52 × Ø42,
  Sleeve Ø54 × Ø44, Sleeve Ø56 × Ø46, Sleeve Ø58 × Ø48, Sleeve Ø60 × Ø50,
  Sleeve Ø62 × Ø52, Sleeve Ø64 × Ø54, Sleeve Ø66 × Ø56, Sleeve Ø68 × Ø58,
  Sleeve Ø70 × Ø60, Sleeve Ø72 × Ø62, Sleeve Ø74 × Ø64, Sleeve Ø76 × Ø66,
  Sleeve Ø78 × Ø68, Sleeve Ø80 × Ø70, Sleeve Ø82 × Ø72.
• Blow molded case (red) / 1 set / N.W.: 18.0 kgs / G.W.: 19.0 kgs / 1.1 CUFT
• For removing and installing bushings and bearings.
• Equipped with sleeve sizes from 34-66mm (ID) and 44-82mm (OD) with 2mm increments.
• Includes 4 spindles with two 27mm hex nuts:---
  M10 × P1.5, M12 × P2.0, M14 × P2.0 and M16 × P2.5
• Provided with two step discs with two sides (A and B sides).
  Discs have tracks for fitting all sleeves, without needing several individual step discs.
• Tool NOT designed to be used with an air/impact wrench.
• Kit included Step Disc, M10 Spindle with two M10 nuts, M12 Spindle with two M12 nuts,
  M14 Spindle with two M14 nuts, M16 Spindle with two M16, Sleeve Ø44 × Ø34,
  Sleeve Ø46 × Ø36, Sleeve Ø48 × Ø38, Sleeve Ø50 × Ø40, Sleeve Ø52 × Ø42,
  Sleeve Ø54 × Ø44, Sleeve Ø56 × Ø46, Sleeve Ø58 × Ø48, Sleeve Ø60 × Ø50,
  Sleeve Ø62 × Ø52, Sleeve Ø64 × Ø54, Sleeve Ø66 × Ø56, Sleeve Ø68 × Ø58,
  Sleeve Ø70 × Ø60, Sleeve Ø72 × Ø62, Sleeve Ø74 × Ø64, Sleeve Ø76 × Ø66,
  Sleeve Ø78 × Ø68, Sleeve Ø80 × Ø70, Sleeve Ø82 × Ø72.
• Blow molded case (red) / 1 set / N.W.: 18.0 kgs / G.W.: 19.0 kgs / 1.1 CUFT
