Motorcycle Repair Tools
251-4119

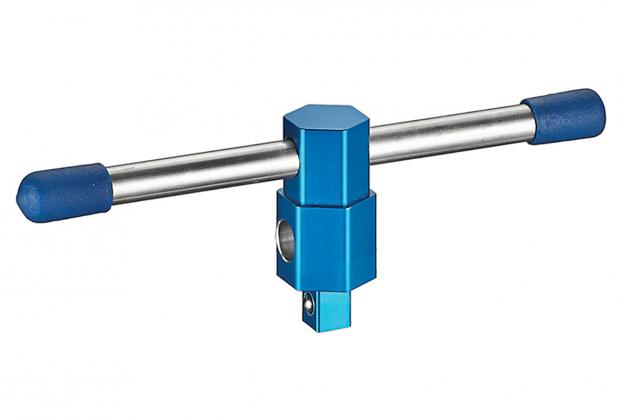

22mm Front Axle Removal Tool
• 22mm hex body mates with the front axle.
• It is equipped with a 3/8” square drive which can be used with a socket to
loosen the front axle pinch bolt, caliper bolts and the rear wheel bolts.
• The 3/8＂square drive is equipped with a spring loaded socket retention
ball like a regular ratchet has. 19mm (3/4”) hex head is supplied with a
6＂breaker bar so it can be used in an emergency out on the road.
• It fits BMW R1200/K1200S/K1200R/K1200GT/F800GS or other modern
motorcycles have a 22mm internal hex front axle including BMW,
Kawasaki and Triumph models.
• Material:：Aluminum 7075, Stainless (6” breaker bar).
• 22mm hex body mates with the front axle.
• It is equipped with a 3/8” square drive which can be used with a socket to
loosen the front axle pinch bolt, caliper bolts and the rear wheel bolts.
• The 3/8＂square drive is equipped with a spring loaded socket retention
ball like a regular ratchet has. 19mm (3/4”) hex head is supplied with a
6＂breaker bar so it can be used in an emergency out on the road.
• It fits BMW R1200/K1200S/K1200R/K1200GT/F800GS or other modern
motorcycles have a 22mm internal hex front axle including BMW,
Kawasaki and Triumph models.
• Material:：Aluminum 7075, Stainless (6” breaker bar).
