Air Tools & Equipment

602-9106 / 602-9108 / 602-9116 / 602-9118 / 602-9126 / 602-9128 / 602-9136 / 6029138

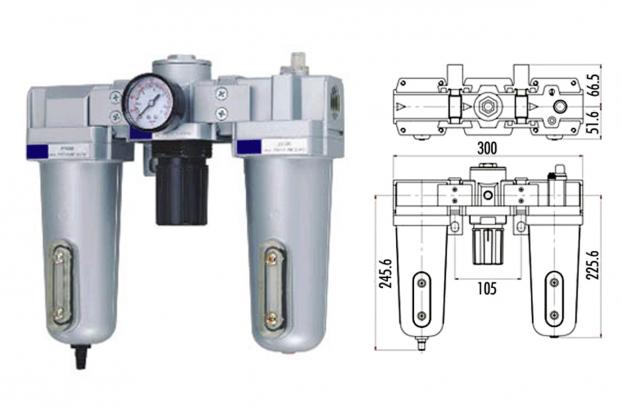

Heavy Duty Type F.R.L. Air Control Unit
← →
Qty :
Add to Inquiry List
•Auto Drain design.
•Transparent water level indicator for easy checking.
•Suitable for any high flow air pressure equipment or system.
•Heavy duty type: High Air flow and drain capacity.
•Port Size (PT, NPT): 3/4” (602-9106)
                                   1” (602-9108).
•Filter Element: 5u.
•Max Input Pressure (PSI): 250.
•Max Output Pressure (PSI): 225.
•Max Flow (L/min): 4600 (602-9106)
                             5200 (602-9108).
•Operating Temperature range: 5ºC ~ 60ºC.
•Drain Capacity: 300ml.
•Oil Capacity: 350ml.
•Recommendable Lubricants: ISO VG-32.
•Air Filter: 3/4” (602-9116) / 1” (602-9118).

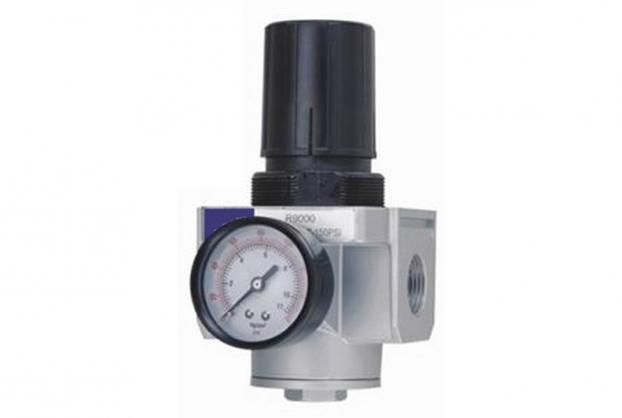

•Regulator: 3/4” (602-9126) / 1” (602-9128).
•Lubricator: 3/4” (602-9136) / 1” (602-9138).
•Auto Drain design.
•Transparent water level indicator for easy checking.
•Suitable for any high flow air pressure equipment or system.
•Heavy duty type: High Air flow and drain capacity.
•Port Size (PT, NPT): 3/4” (602-9106)
                                   1” (602-9108).
•Filter Element: 5u.
•Max Input Pressure (PSI): 250.
•Max Output Pressure (PSI): 225.
•Max Flow (L/min): 4600 (602-9106)
                             5200 (602-9108).
•Operating Temperature range: 5ºC ~ 60ºC.
•Drain Capacity: 300ml.
•Oil Capacity: 350ml.
•Recommendable Lubricants: ISO VG-32.
•Air Filter: 3/4” (602-9116) / 1” (602-9118).
•Regulator: 3/4” (602-9126) / 1” (602-9128).
•Lubricator: 3/4” (602-9136) / 1” (602-9138).
