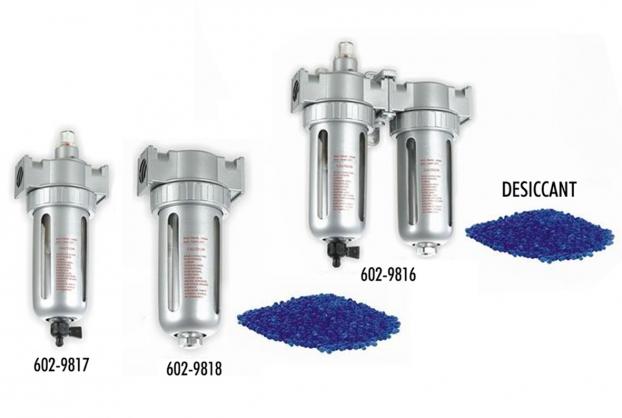

602-9816 / 602-9817 / 602-9818
Air Cleaner / Dryer
•Port Size (PT, NPT): 3/8”.
•Filter Element: 0.01u.
•Max Service Pressure (PSI): 150.
•Max Flow (L/min): 3000.
•APPLICATION
•Paint Spray Gun (gravity, siphon and pressure feed styles).
•Air measuring instruments (requiring clean, dry air).
•FUNCTION
•Coalescing filter: removes oil vapors, which can get past standard filters and water separators.
•Desiccant dryer: reduces humidity in compressed air lines, a MUST HAVE for paint spraying operations.
•FEATURES
•The Red Service Indicator will rise when filter element needs to be changed.
•Desiccant beads change color from blue to pink when they to be changed or reactivated.
•0.01u filter element removes 99.9% of oil vapor particles.
•Clear bowl with metal guards provides easy viewing for contents as well as providing impact protection.
•Quick release bowl for easy maintenance.
•Additional filter after desiccant beads to insure clean downstream air.
•RECOMMENDATIONS
•It is recommended to install a standard air filter/water separator in front of the air cleaner / dryer to remove larger debris (>5u) and condensed water.
•It is also recommended to have a shutoff valve upstream of the air cleaner / dryer for easy depressurization for service.
•Port Size (PT, NPT): 3/8”.
•Filter Element: 0.01u.
•Max Service Pressure (PSI): 150.
•Max Flow (L/min): 3000.
•APPLICATION
•Paint Spray Gun (gravity, siphon and pressure feed styles).
•Air measuring instruments (requiring clean, dry air).
•FUNCTION
•Coalescing filter: removes oil vapors, which can get past standard filters and water separators.
•Desiccant dryer: reduces humidity in compressed air lines, a MUST HAVE for paint spraying operations.
•FEATURES
•The Red Service Indicator will rise when filter element needs to be changed.
•Desiccant beads change color from blue to pink when they to be changed or reactivated.
•0.01u filter element removes 99.9% of oil vapor particles.
•Clear bowl with metal guards provides easy viewing for contents as well as providing impact protection.
•Quick release bowl for easy maintenance.
•Additional filter after desiccant beads to insure clean downstream air.
•RECOMMENDATIONS
•It is recommended to install a standard air filter/water separator in front of the air cleaner / dryer to remove larger debris (>5u) and condensed water.
•It is also recommended to have a shutoff valve upstream of the air cleaner / dryer for easy depressurization for service.
