Air Tools & Equipment

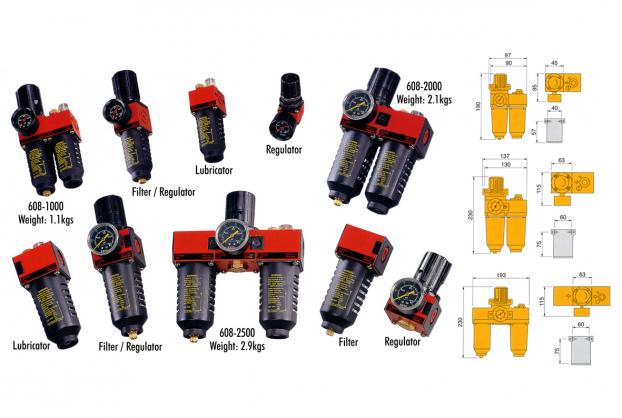

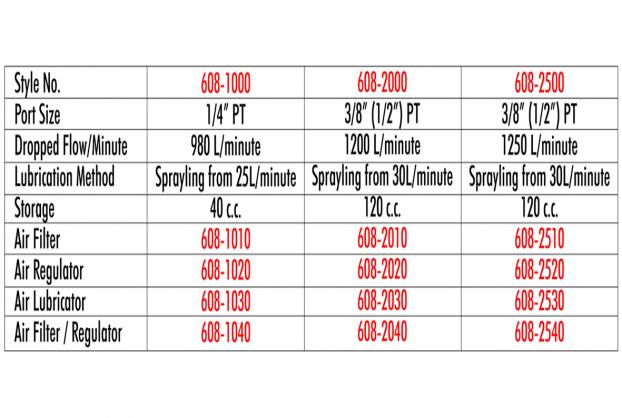

608-1000 / 608-2000 / 608-2500

F.R.L. Combinations
← →
Qty :
Add to Inquiry List
•608-1000: Port Size: 1/4” PT.
•608-2000: Port Size: 3/8” (1/2”) PT.
•608-2500: Port Size: 3/8” (1/2”) PT.

•Applied Fluid: air of pressure.
•Max Pressure:10 kgf/cm2 (140 psi).
•Range of Pressure: 1.0 ~ 9.8 kgf/cm2.
•Filterable: 5 ~ 50 micron.
•Ambient Temperature: 5º~50ºC.
•Discharge Method: broken pressure auto discharge or hand discharge.
•Usable Oil: VG-32 or OM-300A.

•608-1000: Port Size: 1/4” PT.
•608-2000: Port Size: 3/8” (1/2”) PT.
•608-2500: Port Size: 3/8” (1/2”) PT.

•Applied Fluid: air of pressure.
•Max Pressure:10 kgf/cm2 (140 psi).
•Range of Pressure: 1.0 ~ 9.8 kgf/cm2.
•Filterable: 5 ~ 50 micron.
•Ambient Temperature: 5º~50ºC.
•Discharge Method: broken pressure auto discharge or hand discharge.
•Usable Oil: VG-32 or OM-300A.
