New Products

913-3258

Fluid Refilling Set

•Recommended pneumatic power pressure: 5-7 kg/cm2. Temperature range: -46°C to 80°C.
•1500mm-long ROHS PVC filling hose with a quick coupling that can be connected with ATF refill adapters.

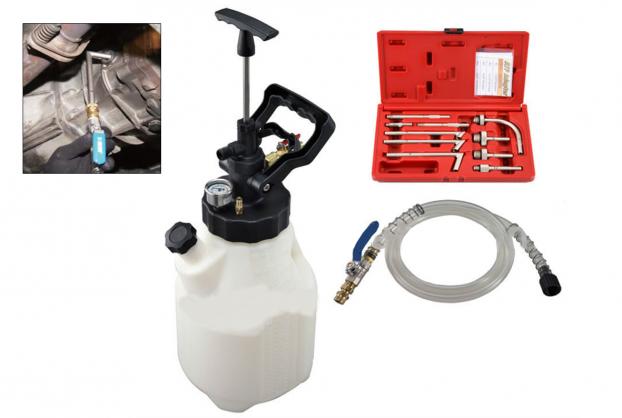

•Fluid refilling set includes a 12.5-liter tank, adapter set for auto transmission fill hole and a hose.
•Recommended for vehicles without a transmission dipstick (e.g. Volkswagen, Audi, Ford,Toyota, Mercedes-Benz and Volvo).
•Tank marked with volume (Liter and US Quart), helping mechanics refill fluid to the auto manufacturer’s specified volume.
•12.5 liter tank with both manual and pneumatic functions. This set DOES NOT have vacuum function.

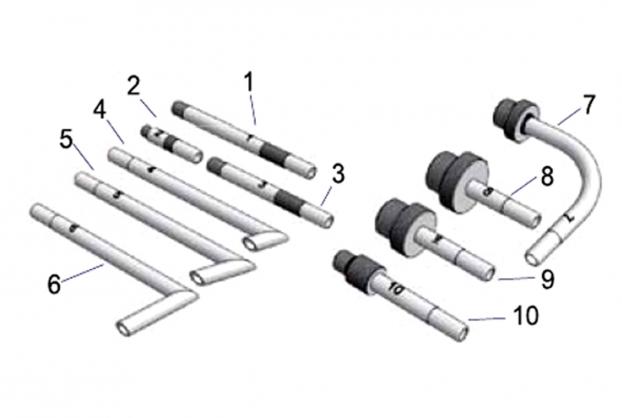

•Adapters:
   1.) Ford ATF Refill Adapter 1/8” NPY for Ford.
   2.) Volvo ATF Refill Adapter 5/16”-24UNF for Volvo.
   3.) VW ATF Refill Adapter 10 x 1.0 for Volkswagen.
   4.) VW ATF Refill Adapter-Short for Volkswage.
   5.) VW AFT Refill Adapter-Long for Volkswagen.
   6.) Angled ATF Refill Adapter for BMW, Honda, Nissan.
   7.) Toyota ATF Refill Adapter M18 x 1.5 for Toyota.
   8.) VW/Audi ATF Refill Adapter 24 x 1.5 for VW, Audi W/DSG transmission.
   9.) Audi ATF Refill Adapter 22 x 1.5 for Audi W/CVT transmission.
   10.) Mercedes ATF Refill Adapter 12 x 1.5 for Mercedes W/722.9 transmission.
•Manual Operation: the exiting volume of fluid is 0.1 liter per manual pump.
•Pneumatic Operation: the exit volume of the fluid is 0.18-0.2 liter per second.


•Recommended pneumatic power pressure: 5-7 kg/cm2. Temperature range: -46°C to 80°C.
•1500mm-long ROHS PVC filling hose with a quick coupling that can be connected with ATF refill adapters.
•Fluid refilling set includes a 12.5-liter tank, adapter set for auto transmission fill hole and a hose.
•Recommended for vehicles without a transmission dipstick (e.g. Volkswagen, Audi, Ford,Toyota, Mercedes-Benz and Volvo).
•Tank marked with volume (Liter and US Quart), helping mechanics refill fluid to the auto manufacturer’s specified volume.
•12.5 liter tank with both manual and pneumatic functions. This set DOES NOT have vacuum function.
•Adapters:
   1.) Ford ATF Refill Adapter 1/8” NPY for Ford.
   2.) Volvo ATF Refill Adapter 5/16”-24UNF for Volvo.
   3.) VW ATF Refill Adapter 10 x 1.0 for Volkswagen.
   4.) VW ATF Refill Adapter-Short for Volkswage.
   5.) VW AFT Refill Adapter-Long for Volkswagen.
   6.) Angled ATF Refill Adapter for BMW, Honda, Nissan.
   7.) Toyota ATF Refill Adapter M18 x 1.5 for Toyota.
   8.) VW/Audi ATF Refill Adapter 24 x 1.5 for VW, Audi W/DSG transmission.
   9.) Audi ATF Refill Adapter 22 x 1.5 for Audi W/CVT transmission.
   10.) Mercedes ATF Refill Adapter 12 x 1.5 for Mercedes W/722.9 transmission.
•Manual Operation: the exiting volume of fluid is 0.1 liter per manual pump.
•Pneumatic Operation: the exit volume of the fluid is 0.18-0.2 liter per second.
