PRODUCTS

Air Tools & Equipment

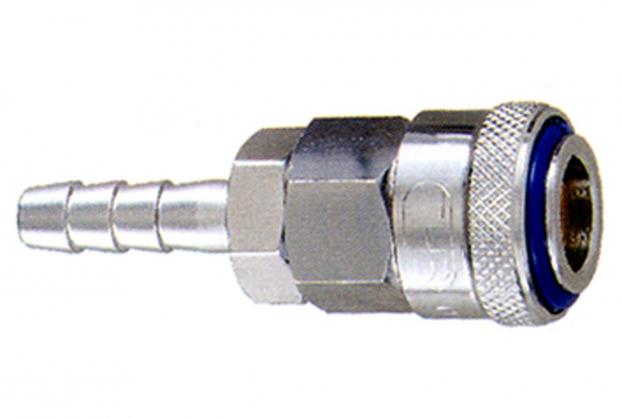

17SHT / 20SHT / 30SHT / 40SHT

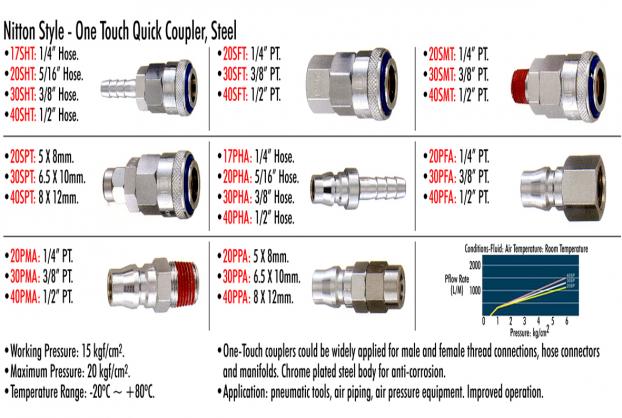

Nitton Style - One Touch Quick Coupler, Steel
← →
Qty :
Add to Inquiry List
•17SHT: 1/4” Hose.
•20SHT: 5/16” Hose.
•30SHT: 3/8” Hose.
•40SHT: 1/2” Hose.

•Working Pressure: 15 kgf/cm2.
•Maximum Pressure: 20 kgf/cm2.
•Temperature Range: -20ºC ~ +80ºC.
•One-Touch couplers could be widely applied for male and female thread connections, hose connectors and manifolds.
•Chrome plated steel body for anti-corrosion.
•Application: pneumatic tools, air piping, air pressure equipment.
•Improved operation.

•17SHT: 1/4” Hose.
•20SHT: 5/16” Hose.
•30SHT: 3/8” Hose.
•40SHT: 1/2” Hose.

•Working Pressure: 15 kgf/cm2.
•Maximum Pressure: 20 kgf/cm2.
•Temperature Range: -20ºC ~ +80ºC.
•One-Touch couplers could be widely applied for male and female thread connections, hose connectors and manifolds.
•Chrome plated steel body for anti-corrosion.
•Application: pneumatic tools, air piping, air pressure equipment.
•Improved operation.

back to list
