Air Tools & Equipment

17SHA / 20SHA / 30SHA / 40SHA

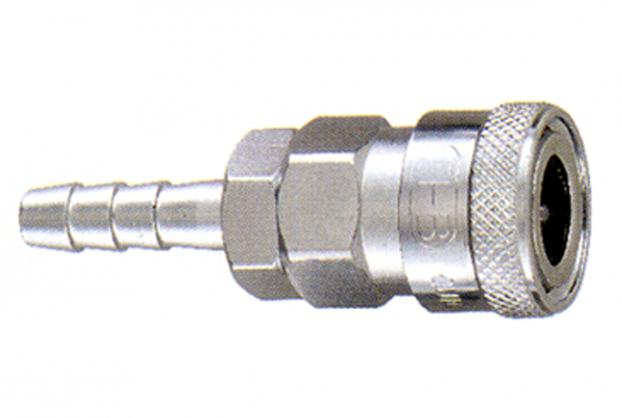

Nitton Style - Regular Type Quick Coupler, Steel
← →
Qty :
Add to Inquiry List
•17SHA: 1/4” Hose.
•20SHA: 5/16” Hose.
•30SHA: 3/8” Hose.
•40SHA: 1/2” Hose.

•Working Pressure: 15 kgf/cm2 (Stainless / Steel). 10 kgf/cm2 (ZDC-2).
•Maximum Pressure: 20 kgf/cm2 (Stainless / Steel). 15 kgf/cm2 (ZDC-2).
•Temperature Range: -20ºC ~ +80ºC.
•One way automatic shut-off valve in the socket.
•Hardened important parts are extremely wear resistant and durable.
•Tested 100,000 times, coupler connection is accurate and reliable.
•For pneumatic tools, air piping, air pressure equipment.

•17SHA: 1/4” Hose.
•20SHA: 5/16” Hose.
•30SHA: 3/8” Hose.
•40SHA: 1/2” Hose.

•Working Pressure: 15 kgf/cm2 (Stainless / Steel). 10 kgf/cm2 (ZDC-2).
•Maximum Pressure: 20 kgf/cm2 (Stainless / Steel). 15 kgf/cm2 (ZDC-2).
•Temperature Range: -20ºC ~ +80ºC.
•One way automatic shut-off valve in the socket.
•Hardened important parts are extremely wear resistant and durable.
•Tested 100,000 times, coupler connection is accurate and reliable.
•For pneumatic tools, air piping, air pressure equipment.
