Air Tools & Equipment

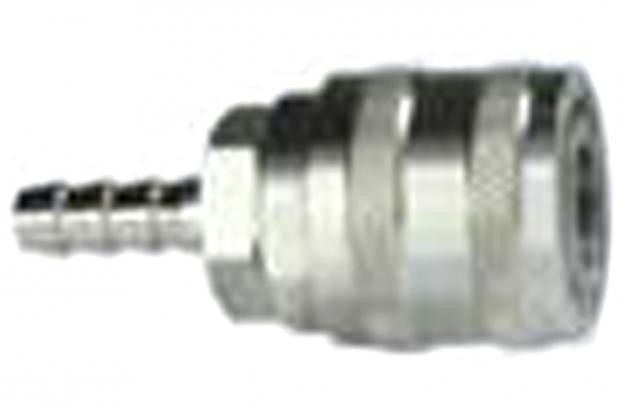

S22-20SHA / S22-30SHA

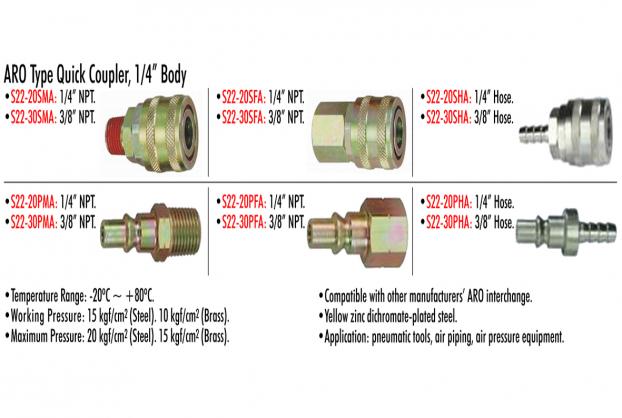

ARO Type Quick Coupler, 1/4” Body
← →
Qty :
Add to Inquiry List
•S22-20SHA: 1/4” Hose.
•S22-30SHA: 3/8” Hose.

•Temperature Range: -20ºC ~ +80ºC.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Compatible with other manufacturers’ ARO interchange.
•Yellow zinc dichromate-plated steel.
•Application: pneumatic tools, air piping, air pressure equipment.
•S22-20SHA: 1/4” Hose.
•S22-30SHA: 3/8” Hose.

•Temperature Range: -20ºC ~ +80ºC.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Compatible with other manufacturers’ ARO interchange.
•Yellow zinc dichromate-plated steel.
•Application: pneumatic tools, air piping, air pressure equipment.
