S25-20PHA

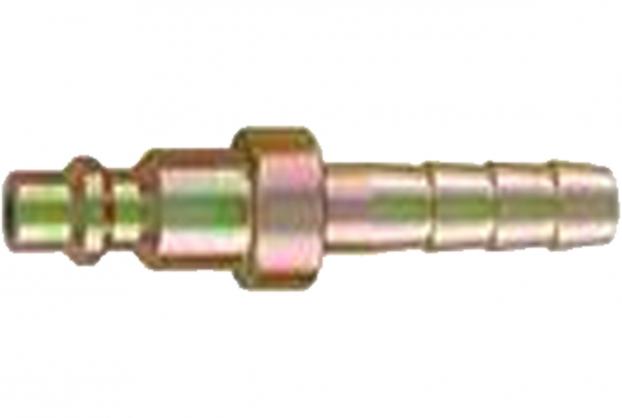

Milton Type Quick Coupler, 1/4” Body (Industrial)
← →
Qty :
Add to Inquiry List
•S25-20PHA: 1/4” Hose.
•S25-30PHA: 3/8” Hose.
•Compatible with other manufacturers’ Milton / Industrial interchange.
•Application: Pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
•Yellow zinc dichromate plated steel.

•S25-20PHA: 1/4” Hose.
•S25-30PHA: 3/8” Hose.
•Compatible with other manufacturers’ Milton / Industrial interchange.
•Application: Pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
•Yellow zinc dichromate plated steel.
