S29-20SHA / S29-30SHA

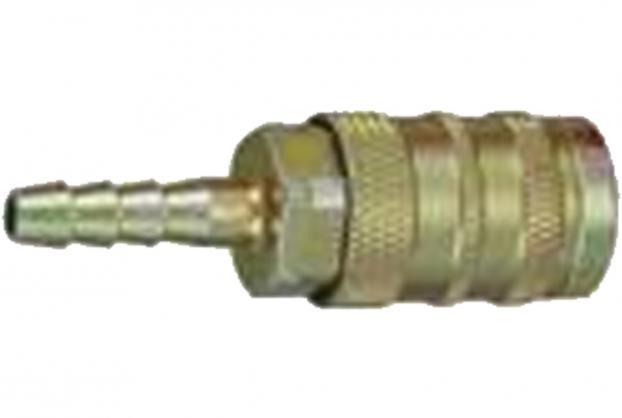

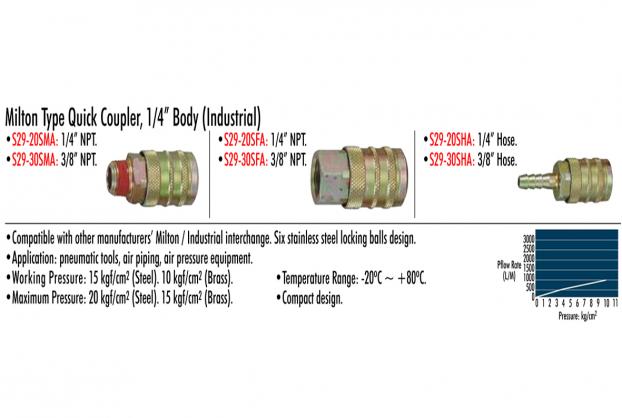

Milton Type Quick Coupler, 1/4” Body (Industrial)
← →
Qty :
Add to Inquiry List
•S29-20SHA: 1/4” Hose.
•S29-30SHA: 3/8” Hose.
•Compatible with other manufacturers’ Milton / Industrial interchange.
•Six stainless steel locking balls design.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
•Compact design.
•S29-20SHA: 1/4” Hose.
•S29-30SHA: 3/8” Hose.
•Compatible with other manufacturers’ Milton / Industrial interchange.
•Six stainless steel locking balls design.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
•Compact design.
