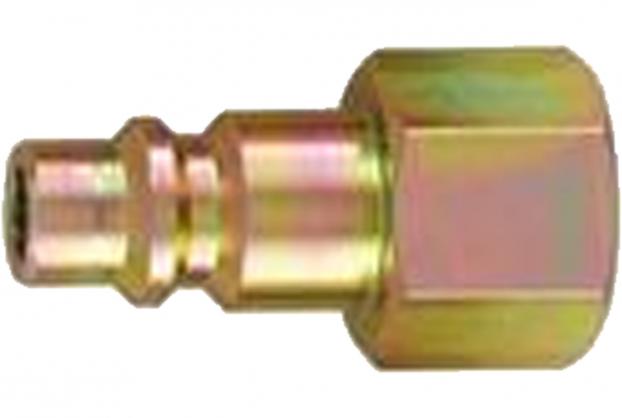

S24-20PFA / S24-30PFA / S24-40PFA

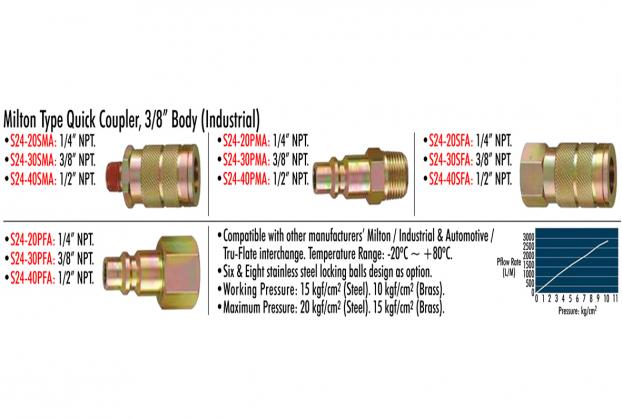

Milton Type Quick Coupler, 3/8” Body (Industrial)
← →
Qty :
Add to Inquiry List
•S24-20PFA: 1/4” NPT.
•S24-30PFA: 3/8” NPT.
•S24-40PFA: 1/2” NPT.

•Compatible with other manufacturers’ Milton / Industrial & Automotive / Tru-Flate interchange.
•Temperature Range: -20ºC ~ +80ºC.
•Six & Eight stainless steel locking balls design as option.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•S24-20PFA: 1/4” NPT.
•S24-30PFA: 3/8” NPT.
•S24-40PFA: 1/2” NPT.

•Compatible with other manufacturers’ Milton / Industrial & Automotive / Tru-Flate interchange.
•Temperature Range: -20ºC ~ +80ºC.
•Six & Eight stainless steel locking balls design as option.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
