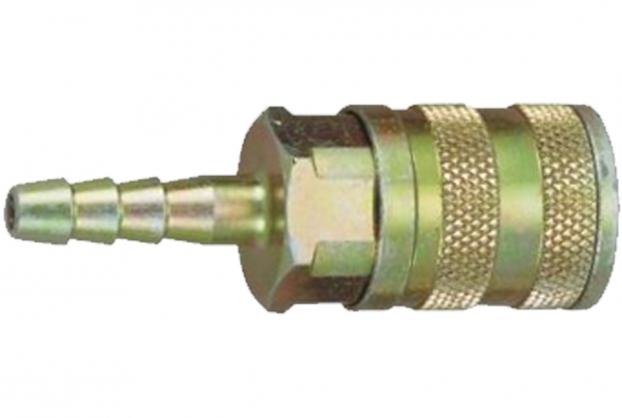

S21-20SHA / S21-30SHA

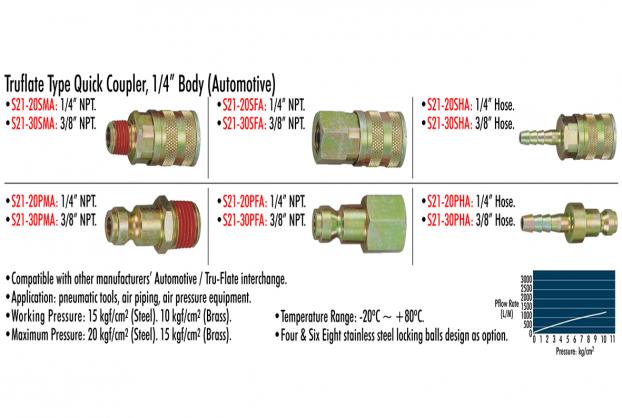

Truflate Type Quick Coupler, 1/4” Body (Automotive)
← →
Qty :
Add to Inquiry List
•S21-20SHA: 1/4” Hose.
•S21-30SHA: 3/8” Hose.

•Compatible with other manufacturers’ Automotive / Tru-Flate interchange.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
•Four & Six Eight stainless steel locking balls design as option.
•S21-20SHA: 1/4” Hose.
•S21-30SHA: 3/8” Hose.

•Compatible with other manufacturers’ Automotive / Tru-Flate interchange.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
•Four & Six Eight stainless steel locking balls design as option.
