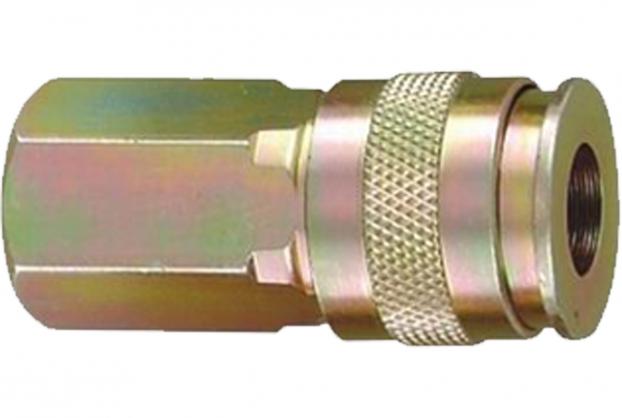

S27-20SFA / S27-30SFA

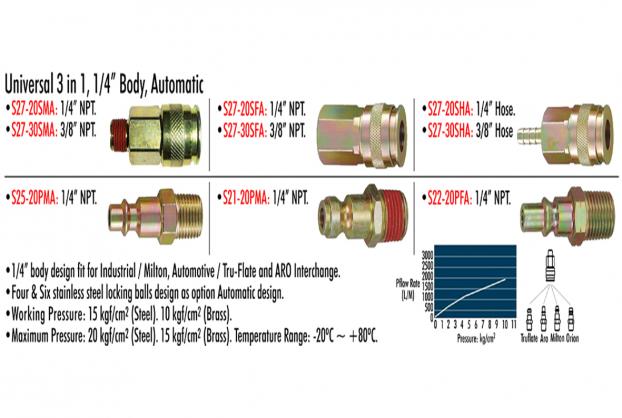

Universal 3 in 1, 1/4” Body, Automatic
•S27-20SFA: 1/4” NPT.
•S27-30SFA: 3/8” NPT.
•1/4” body design fit for Industrial / Milton, Automotive / Tru-Flate and ARO Interchange.
•Four & Six stainless steel locking balls design as option Automatic design.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
•S27-20SFA: 1/4” NPT.
•S27-30SFA: 3/8” NPT.
•1/4” body design fit for Industrial / Milton, Automotive / Tru-Flate and ARO Interchange.
•Four & Six stainless steel locking balls design as option Automatic design.
•Working Pressure: 15 kgf/cm2 (Steel). 10 kgf/cm2 (Brass).
•Maximum Pressure: 20 kgf/cm2 (Steel). 15 kgf/cm2 (Brass).
•Temperature Range: -20ºC ~ +80ºC.
