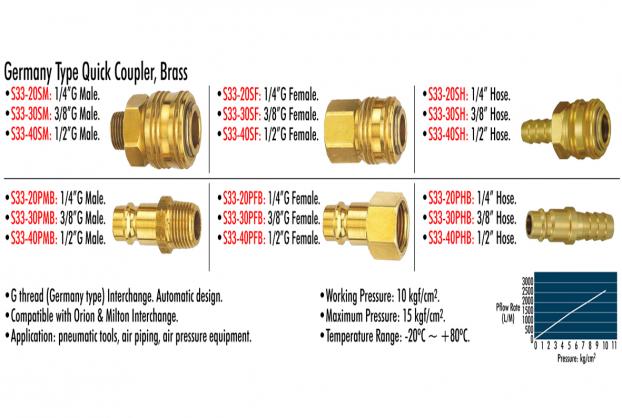

S33-20SF / S33-30SF / S33-40SF

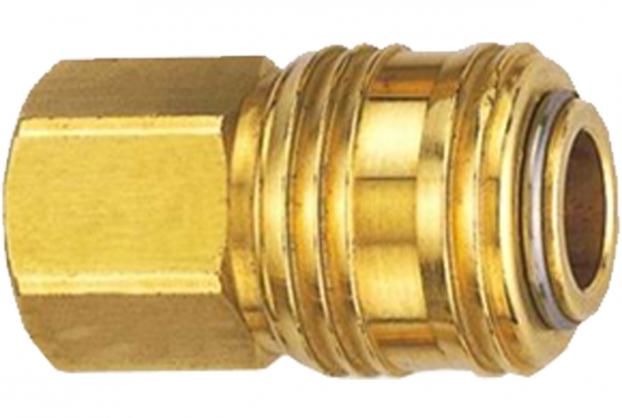

Germany Type Quick Coupler, Brass
← →
Qty :
Add to Inquiry List
•S33-20SF: 1/4”G Female.
•S33-30SF: 3/8”G Female.
•S33-40SF: 1/2”G Female.

•G thread (Germany type) Interchange. Automatic design.
•Compatible with Orion & Milton Interchange.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 10 kgf/cm2.
•Maximum Pressure: 15 kgf/cm2.
•Temperature Range: -20ºC ~ +80ºC.

•S33-20SF: 1/4”G Female.
•S33-30SF: 3/8”G Female.
•S33-40SF: 1/2”G Female.

•G thread (Germany type) Interchange. Automatic design.
•Compatible with Orion & Milton Interchange.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 10 kgf/cm2.
•Maximum Pressure: 15 kgf/cm2.
•Temperature Range: -20ºC ~ +80ºC.
