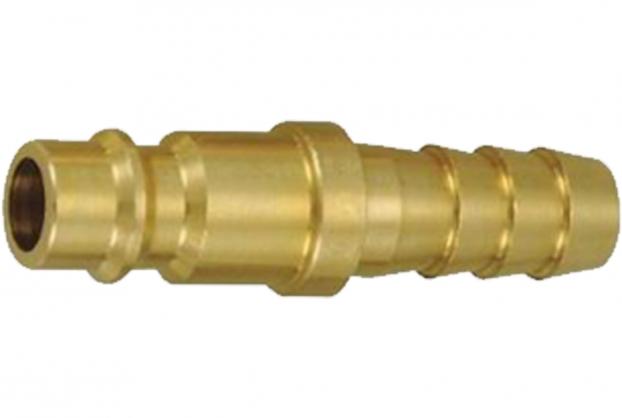

S33-20PHB / S33-30PHB / S33-40PHB

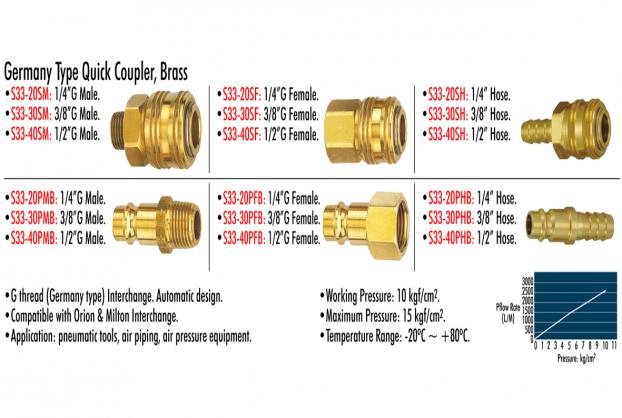

Germany Type Quick Coupler, Brass
← →
Qty :
Add to Inquiry List
•S33-20PHB: 1/4” Hose.
•S33-30PHB: 3/8” Hose.
•S33-40PHB: 1/2” Hose.

•G thread (Germany type) Interchange. Automatic design.
•Compatible with Orion & Milton Interchange.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 10 kgf/cm2.
•Maximum Pressure: 15 kgf/cm2.
•Temperature Range: -20ºC ~ +80ºC.

•S33-20PHB: 1/4” Hose.
•S33-30PHB: 3/8” Hose.
•S33-40PHB: 1/2” Hose.

•G thread (Germany type) Interchange. Automatic design.
•Compatible with Orion & Milton Interchange.
•Application: pneumatic tools, air piping, air pressure equipment.
•Working Pressure: 10 kgf/cm2.
•Maximum Pressure: 15 kgf/cm2.
•Temperature Range: -20ºC ~ +80ºC.
