120-0404 / 120-0405

High Pressure Grease Coupler
← →
Qty :
Add to Inquiry List

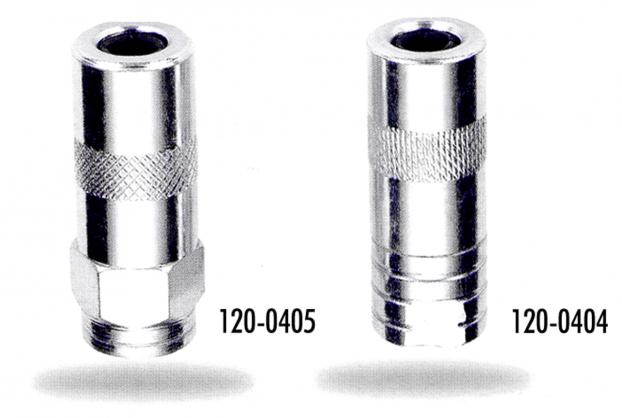

•120-0404: Round Type. Dimension: 38.7mm (L) x 14.3mm (Dia.).
•120-0405: Hexagonal Type. Dimension: 37.7mm (L) x 14.3mm (Dia.).

•Thread:---
 1/8” x 27NPT (For North America market).
 1/8” x 28PT (For general markets except North America, Germany....)
 10 x 1.0mm (For Germany, South Africa, Egypt...etc.).
•Working Pressure: 4,500 psi (310 bar).
•Develop Pressure: 10,000 psi (690 bar).
•Attached with 4 jaws and ball check.
•Finish: Zinc Plated.

•120-0404: Round Type. Dimension: 38.7mm (L) x 14.3mm (Dia.).
•120-0405: Hexagonal Type. Dimension: 37.7mm (L) x 14.3mm (Dia.).

•Thread:---
 1/8” x 27NPT (For North America market).
 1/8” x 28PT (For general markets except North America, Germany....)
 10 x 1.0mm (For Germany, South Africa, Egypt...etc.).
•Working Pressure: 4,500 psi (310 bar).
•Develop Pressure: 10,000 psi (690 bar).
•Attached with 4 jaws and ball check.
•Finish: Zinc Plated.
