Grease & Lubricants Equipment
120-1010

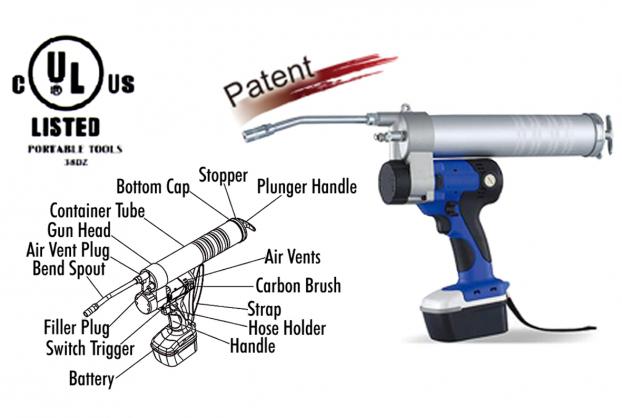

Cordless Grease Gun
•Unique style and up-to-date design DC 12V rechargeable battery CORDLESS GREASE GUN.
•Innovative Aluminum Container tube, light weight, fit durable time working demand and labor-saving.
•Fully automatic, cycles continuous grease flow with trigger depressed.
•High Pressure performance to deliver up to: 8,000 psi I 550 bar.
•Recommended working pressure: 4,000 psi I 275 bar.
•Rechargeable battery included.
•Fast charger (AE-240): included (universal voltage).
AC100V - 240V. 50/60 Hz.
Charge Range: DC 12V -- DC 19.2V.
Output Current: 2.5 A
Charging Time: approx. 30 min.
•Capacity: 140z / 400 c.c.
•3-Way Loading: Cartridge / Dispenser / Bulk.
00•Cordless Grease Gun
•Model: Grip Type
•Voltage: DC12V.
•Capacity (cartridge / bulk): 14 oz / 400 c.c.
•Finish:
Gun Head: Powder Metal Painted (silver).
Aluminum Container: Anodizing (silver).
Handle: PA + 30% Fiber.
Manual Gun Head: Polished.
Manual Handle: Chrome Plated.
Outlet Parts: Galvanized.
Battery Case: PC+ABS.
Blow Case: PE.
•Loading Ways (3-Way): Cartridge / Dispenser / bulk.
•Output Range:
Workina Pressure: 4000 psi / 275 bar.
Burst Pressure: 8,000 psi / 550 bar.
•Weight (with Battery & Bend Spout): 2.47 kg.
•Weight (Whole Set): 4.0 kg.
•Volume (per min.): 200 c.c.±10.
•Dimension: L x W x H (mm/inches, without parts attached):
360 x 70 x 300 mm (14.17" x 2.76" x 11.80").
•Packing: Blow Case 3sets / 12.0kgs / 21.3kgs / 2.8'
•Battery Pack AE-1213CD.
•Fast Charger AE-240.
•Continuous operation for faster greasing.
•Build-in L.E.D. light for great convenience in low light areas.
•Battery recharges in only 30 mirutes and lasts long enough to despense as much as 6 tube of grease.
•12Volt NiCad rechargeable"Slide Style Batter"included.
•30minutes quick charger(AE-240) included.
•Carrying case is durable for long-lasting protection and storage.
•Weight: 2.47 kgs/unit and 4.0 kgs / Combination kit

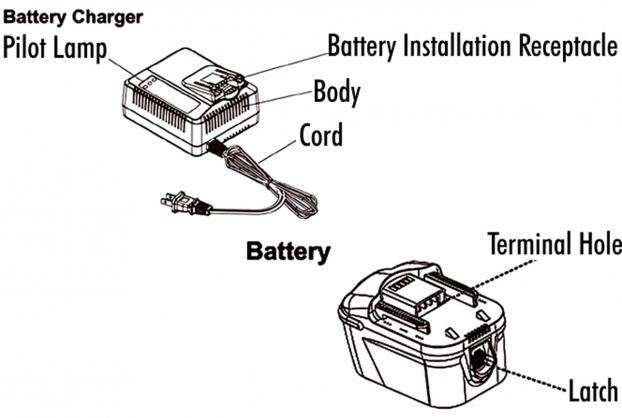

•Charger List
•Model: AE-240
•Input Voltage: AC100V~240V.
•Frequency: 50/60HZ.
•Output Voltage: DC30V.
•Charge Range: DC12V~DC19.2V.
•Output Current: 2.5A.
•Approval: PSE / CUL / CE.
•Charging Time:
1.3Ah Ni-Cd / 20min.
2.0Ah Ni-Cd / 30min.
2.0Ah Ni-Mh / 60min.
3.0Ah Ni-Mh / 60min.
•Battery Pack List
•Model: AE-1213CD
•Voltage: 12V.
•Capacity cell type:
1.3 / 2.0Ah Ni-Cd.
2.0Ah Ni-Mh
•Unique style and up-to-date design DC 12V rechargeable battery CORDLESS GREASE GUN.
•Innovative Aluminum Container tube, light weight, fit durable time working demand and labor-saving.
•Fully automatic, cycles continuous grease flow with trigger depressed.
•High Pressure performance to deliver up to: 8,000 psi I 550 bar.
•Recommended working pressure: 4,000 psi I 275 bar.
•Rechargeable battery included.
•Fast charger (AE-240): included (universal voltage).
AC100V - 240V. 50/60 Hz.
Charge Range: DC 12V -- DC 19.2V.
Output Current: 2.5 A
Charging Time: approx. 30 min.
•Capacity: 140z / 400 c.c.
•3-Way Loading: Cartridge / Dispenser / Bulk.
00•Cordless Grease Gun
•Model: Grip Type
•Voltage: DC12V.
•Capacity (cartridge / bulk): 14 oz / 400 c.c.
•Finish:
Gun Head: Powder Metal Painted (silver).
Aluminum Container: Anodizing (silver).
Handle: PA + 30% Fiber.
Manual Gun Head: Polished.
Manual Handle: Chrome Plated.
Outlet Parts: Galvanized.
Battery Case: PC+ABS.
Blow Case: PE.
•Loading Ways (3-Way): Cartridge / Dispenser / bulk.
•Output Range:
Workina Pressure: 4000 psi / 275 bar.
Burst Pressure: 8,000 psi / 550 bar.
•Weight (with Battery & Bend Spout): 2.47 kg.
•Weight (Whole Set): 4.0 kg.
•Volume (per min.): 200 c.c.±10.
•Dimension: L x W x H (mm/inches, without parts attached):
360 x 70 x 300 mm (14.17" x 2.76" x 11.80").
•Packing: Blow Case 3sets / 12.0kgs / 21.3kgs / 2.8'
•Battery Pack AE-1213CD.
•Fast Charger AE-240.
•Continuous operation for faster greasing.
•Build-in L.E.D. light for great convenience in low light areas.
•Battery recharges in only 30 mirutes and lasts long enough to despense as much as 6 tube of grease.
•12Volt NiCad rechargeable"Slide Style Batter"included.
•30minutes quick charger(AE-240) included.
•Carrying case is durable for long-lasting protection and storage.
•Weight: 2.47 kgs/unit and 4.0 kgs / Combination kit
•Charger List
•Model: AE-240
•Input Voltage: AC100V~240V.
•Frequency: 50/60HZ.
•Output Voltage: DC30V.
•Charge Range: DC12V~DC19.2V.
•Output Current: 2.5A.
•Approval: PSE / CUL / CE.
•Charging Time:
1.3Ah Ni-Cd / 20min.
2.0Ah Ni-Cd / 30min.
2.0Ah Ni-Mh / 60min.
3.0Ah Ni-Mh / 60min.
•Battery Pack List
•Model: AE-1213CD
•Voltage: 12V.
•Capacity cell type:
1.3 / 2.0Ah Ni-Cd.
2.0Ah Ni-Mh
