•Cartridge Loading: 16oz.

•Bulk Loading: 500c.c.

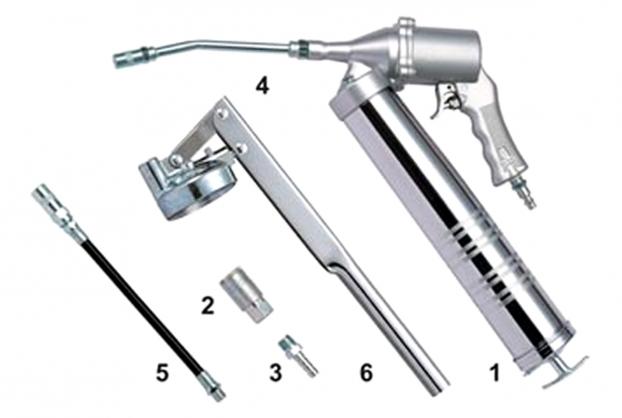

•Contents for 6pcs combination kit:

 1.) Air Grease Gun.

 2.) 1/4” Quick Release Coupler.

 3.) 1/4” Hose Fitting.

 4.) Metallic Bend Spout.

 5.) 9” High Pressure Nylon Hose.

 6.) Manual Operated Gun Head.

•Finish:

 Gun Head: Oven Painting.

 Container Tube: Chrome Plated.

•Pressure Range:

 Input: 60 ~ 150 psi (4.2 ~ 10.3 bar) compressed air suppilled.

 Output: 2400 ~ 6000 psi (165 ~ 412 bar).

•Working Pressure:

  Input: recommended air source 90 psi (6.2 bar).

 Output: 3600 psi (250 bar).

•Volume: 3.5c.c. / per sec appro.

•Standard Spout Equipped:

 Metallic bend spout (120-0571~120-0573).

 Metallic bend spout and 9” nylon hose (120-0576~120-0578).



•With the attractive kits, you can choose one operation way convenient to you.

•Where there is no air source or air hose can’t reach, you can change the air gun head to the hand operated gun head to proceed lubrication by manual operation.

•Specially ergonomics designed elegant style high quality and professional pneumatic tool.

•Epochal, innovative achievement for constructional improvement designed facility.

•Fully automatic, cycles continuous grease flow with trigger depressed.

•Exclusive air piston design assures consistent priming.

•Heavy-duty spring for prime retention.

•Ideal for constructional vehicle, machine, automobiles, farm and garden equipments, recreation vehicles...etc.

•Round plug equipped for grease loading which from grease dispenser or bucker pump.

•Air vent valve and filler plug are optional.

•High pressure performance with 60 to 150 psi pressure air generated from the air compressor supplied into the  air inlet, it can deliver 2400 to 6000 psi when trigger pressed (40:1 pressure ratio).

•Trigger should be pressed thoroughly during operation.

•Add oil daily through air fitting before use.

•Recommended working pressure air source: 90 psi(6.2 bar). 3-way loading available:

•Grease cartridge loading.

•Dispenser loading. Bulk loading.
