Battery & Electric System

111-2563 / 111-2564

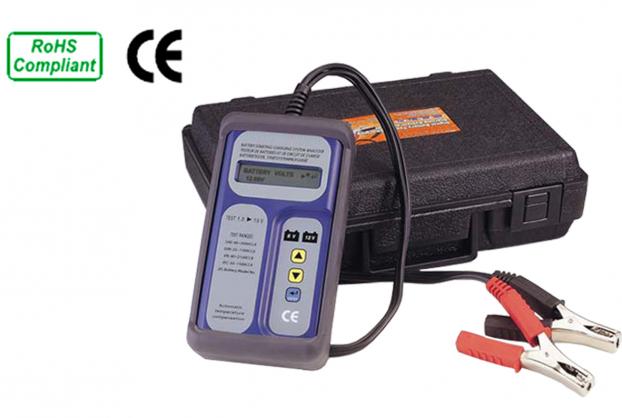

Digital Battery / Charging / Starting System Analyzer
← →
Qty :
Add to Inquiry List
•111-2563: Application: 6V & 12V Batteries, 12V & 24V Charging / Starting Systems.
                     Operation Range: 40~2000CCA (SAE). Rating System: SAE, DIN, EN, IEC, JIS (Battery Type No.).
•111-2564: Application: 12V Battery, 12V Charging / Starting System. Operation Range: 2~200AH. Rating System: AH.

•Languages - 7 Languages: English, French, Spanish, German, Italian, Portuguese, Japanese.
•Test Discharged Battery: Down to 1.5V.
•Voltmeter: 1.5V ~30V.
•Display: 2 Lines 16 Characters LCD.
•Test Lead: 31inch/80cm.
•Accessory: 1 pc of 9V Battery.
•Dimension: L198 x W114 x H53 (mm).

•111-2563: Application: 6V & 12V Batteries, 12V & 24V Charging / Starting Systems.
                     Operation Range: 40~2000CCA (SAE). Rating System: SAE, DIN, EN, IEC, JIS (Battery Type No.).
•111-2564: Application: 12V Battery, 12V Charging / Starting System. Operation Range: 2~200AH. Rating System: AH.

•Languages - 7 Languages: English, French, Spanish, German, Italian, Portuguese, Japanese.
•Test Discharged Battery: Down to 1.5V.
•Voltmeter: 1.5V ~30V.
•Display: 2 Lines 16 Characters LCD.
•Test Lead: 31inch/80cm.
•Accessory: 1 pc of 9V Battery.
•Dimension: L198 x W114 x H53 (mm).
