Battery & Electric System

111-2567 / 111-2568 / 111-2569

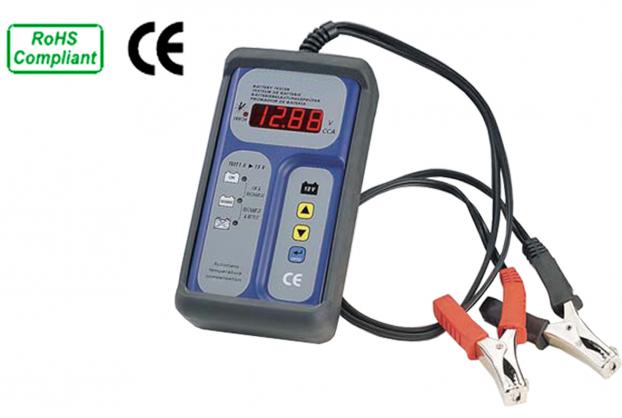

Digital Battery / Charging / Starting System Analyzer
← →
Qty :
Add to Inquiry List
•111-2567: Application: 12V Battery, 12V Charging / Starting System. Operation Range: 200~1200CCA (SAE). Rating System: SAE, DIN, EN, IEC, CA. Voltmeter: 1.5V ~15V.

•111-2568: Application: 12V Battery, 12V Charging / Starting System. Operation Range: 2~30AH. Rating System: AH. Voltmeter: 1.5V ~15V.

•111-2569: Application: 12V Battery, 12V Charging / Starting System.  Operation Range: 25~200AH. Rating System: AH. Voltmeter: 1.5V ~15V.

•Test Discharged Battery: Down to 1.5V.
•Display: 4 Digital + 3 LEDs (Green, Yellow, Red).
•Test Lead: 31inch/80cm.
•Accessory: 1 pc of 9V Battery.
•Dimension: L198 x W114 x H53 (mm).
•Note: 111-2568 is special designed for use of Motorcycles, Lawn Mowers, Watercrafts, Sports Cars...etc.

•111-2567: Application: 12V Battery, 12V Charging / Starting System. Operation Range: 200~1200CCA (SAE). Rating System: SAE, DIN, EN, IEC, CA. Voltmeter: 1.5V ~15V.

•111-2568: Application: 12V Battery, 12V Charging / Starting System. Operation Range: 2~30AH. Rating System: AH. Voltmeter: 1.5V ~15V.

•111-2569: Application: 12V Battery, 12V Charging / Starting System.  Operation Range: 25~200AH.Rating System: AH. Voltmeter: 1.5V ~15V.

•Test Discharged Battery: Down to 1.5V.
•Display: 4 Digital + 3 LEDs (Green, Yellow, Red).
•Test Lead: 31inch/80cm.
•Accessory: 1 pc of 9V Battery.
•Dimension: L198 x W114 x H53 (mm).
•Note: 111-2568 is special designed for use of Motorcycles, Lawn Mowers, Watercrafts, Sports Cars...etc.
